SKU: ROS001
Category: Pressure Transmitter
Pressure Transmitter
Brand:
Emerson Rosemount
Model: 2051
Description
The

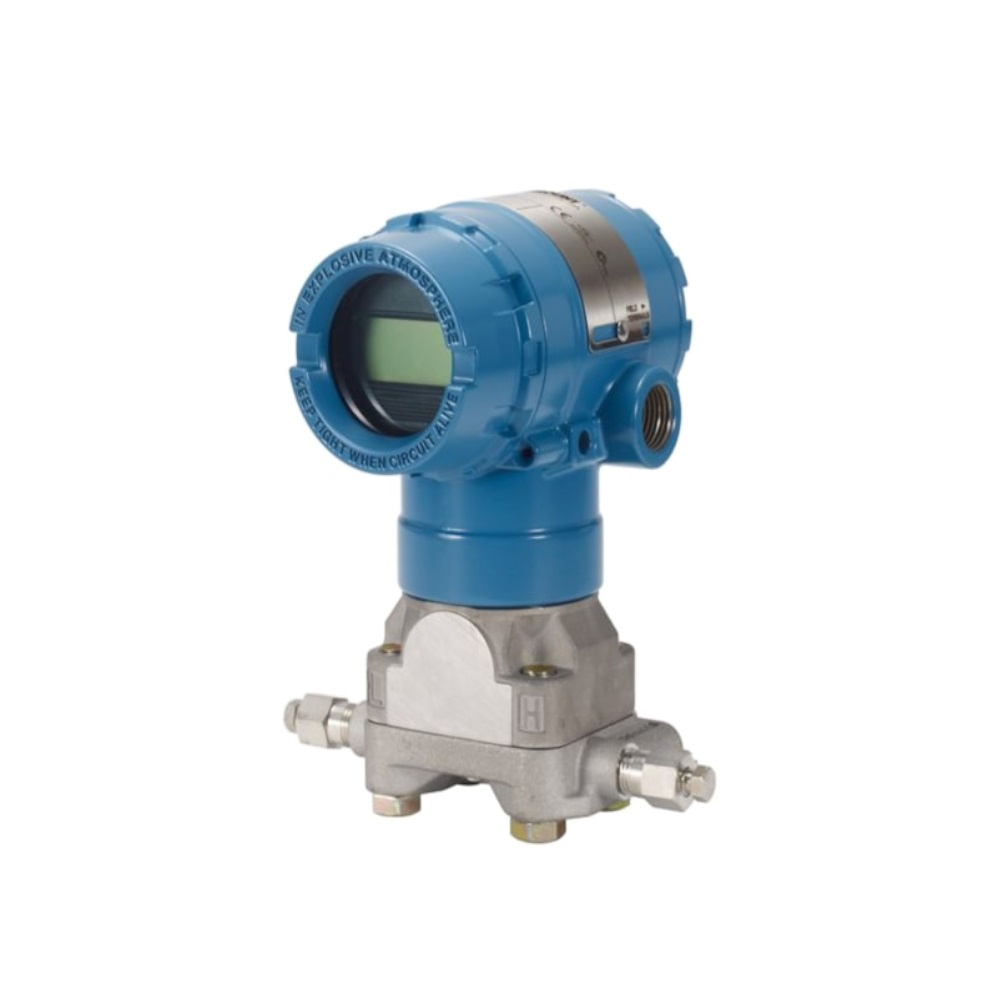

Rosemount 2051 Coplanar Pressure Transmitter is industry-standard for
differential and gage measurements. This safety-certified transmitter features
a Local Operator Interface with easy-to-use menus and built-in configuration
buttons, allowing you to easily commission the device. Engineered with the
patented coplanar technology, this device offers installation flexibility for
integrated flow or level solutions. With optional WirelessHART® technology, you
can add measurement points fast, even in remote and hard-to reach-locations.
Technical
Data
|
Reference
Accuracy |
Up
to 0.05% of span |
|
Rangedown |
Up
to 100:1 |
|
Communication
Protocol |
4-20
mA HART®, WirelessHART®, FOUNDATION™ Fieldbus, PROFIBUS®, 1-5 V Low Power
HART® |
|
Measurement
Range |
Up
to 2000 psi (137,9 bar) Differential, Up to 2000 psig (137,9 bar) Gage |
|
Process
Wetted Material |
316L
SST, Alloy C-276, Tantalum |
|
Diagnostics |
Basic
Diagnostics |
|
Certifications/Approvals |
SIL
2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE®, hazardous
location, see full specs for complete list of certifications |
