SKU: 3051S
Category: Pressure Transmitter
Pressure Transmitter
Brand:
Emerson Rosemount
Model: 3051S
Description

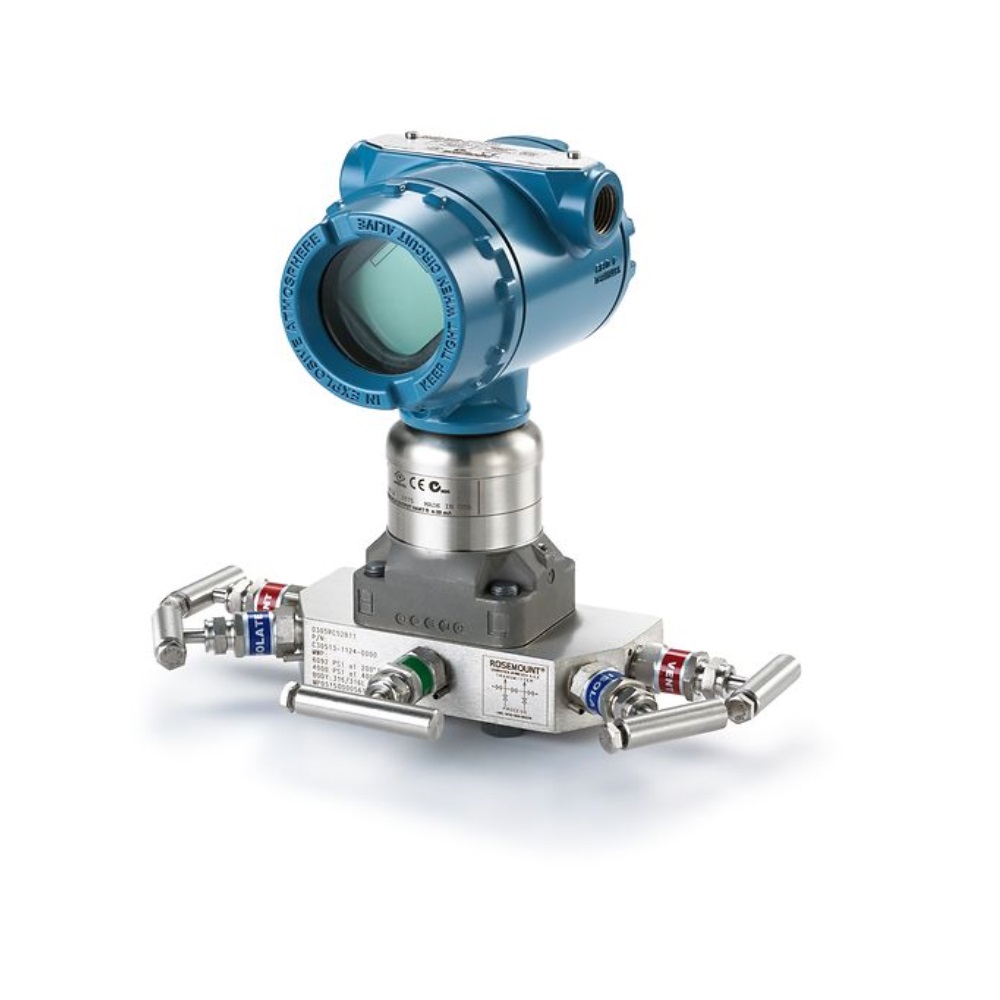

The Rosemount 3051S Coplanar™ Pressure Transmitter is designed with the patented Coplanar technology and is the no-equal solution for pressure, flow and level measurements. This scalable platform, available in both wired and WirelessHART® communication protocols, seamlessly integrates with manifolds, primary elements and seal solutions and optimizes performance for accurate differential, gage and absolute pressure measurements. With the SuperModule™ platform, this transmitter resists overpressure and line pressure effects to maintain unmatched performance.
Technical
Data
Rangedown | Up to 200:1 |
Communication Protocol | 4-20 mA HART, WirelessHART®,
FOUNDATION fieldbus |
Measurement Range | Up to 2000psi (137,89 bar)
Differential, Up to 2000psig (137,89 bar) Gage, Up to 4000psia (275,79 bar)
Absolute |
Process Wetted Material | 316L SST, Alloy C-276, Alloy
400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST |
Diagnostics | Basic Diagnostics, Loop
Integrity, Process Intelligence, Plugged Impulse Line |
Certifications/Approvals | SIL 2/3 certified to IEC 61508
by an independent 3rd party, NSF, NACE, hazardous location, see full specs
for complete list of certifications |
Wireless Update Rate | 1 sec. to 60 min., user
selectable |
Wireless Range | Long range (225 m), extended
range (800 m), remote (225 m) and high-gain remote (1 km) |
