SKU: 3051S-INLINE
Category: Pressure Transmitter
Pressure Transmitter
Brand:
Emerson Rosemount
Model: 3051S
Description
Optimize

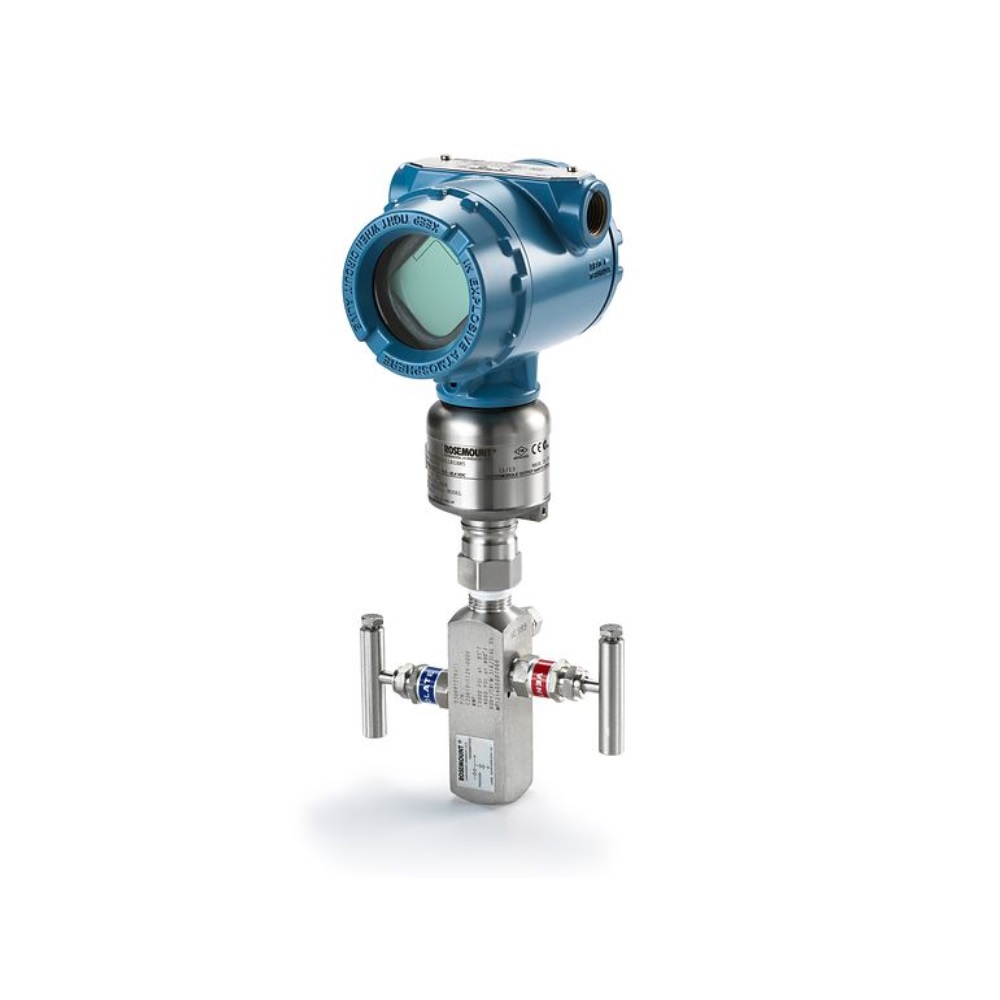

performance with the Rosemount 3051S In-line Pressure Transmitter, the
industry’s best-in-class solution. This scalable SuperModule™ platform is
without equal for gauge and absolute pressure measurement performance, as it
minimizes process variability and reduces maintenance. Engineered for direct
threaded connection, manifold, or seal system solutions, this in-line pressure
transmitter connects to the process, making installation quick and
cost-effective.
Technical
Data
Range down | Up to 200:1 |
Communication Protocol | 4-20 mA HART, WirelessHART®,
FOUNDATION fieldbus |
Measurement Range | Up to 10000psi (689,47 bar)
Gage, Up to 10000psia (689,47 bar) Absolute |
Process Wetted Material | 316L SST, Alloy C-276 |
Diagnostics | Basic Diagnostics, Loop
Integrity, Process Intelligence, Plugged Impulse Line |
Certifications/Approvals | SIL 2/3 certified to IEC 61508
by an independent 3rd party, NSF, NACE, hazardous location, see full specs
for complete list of certifications |
