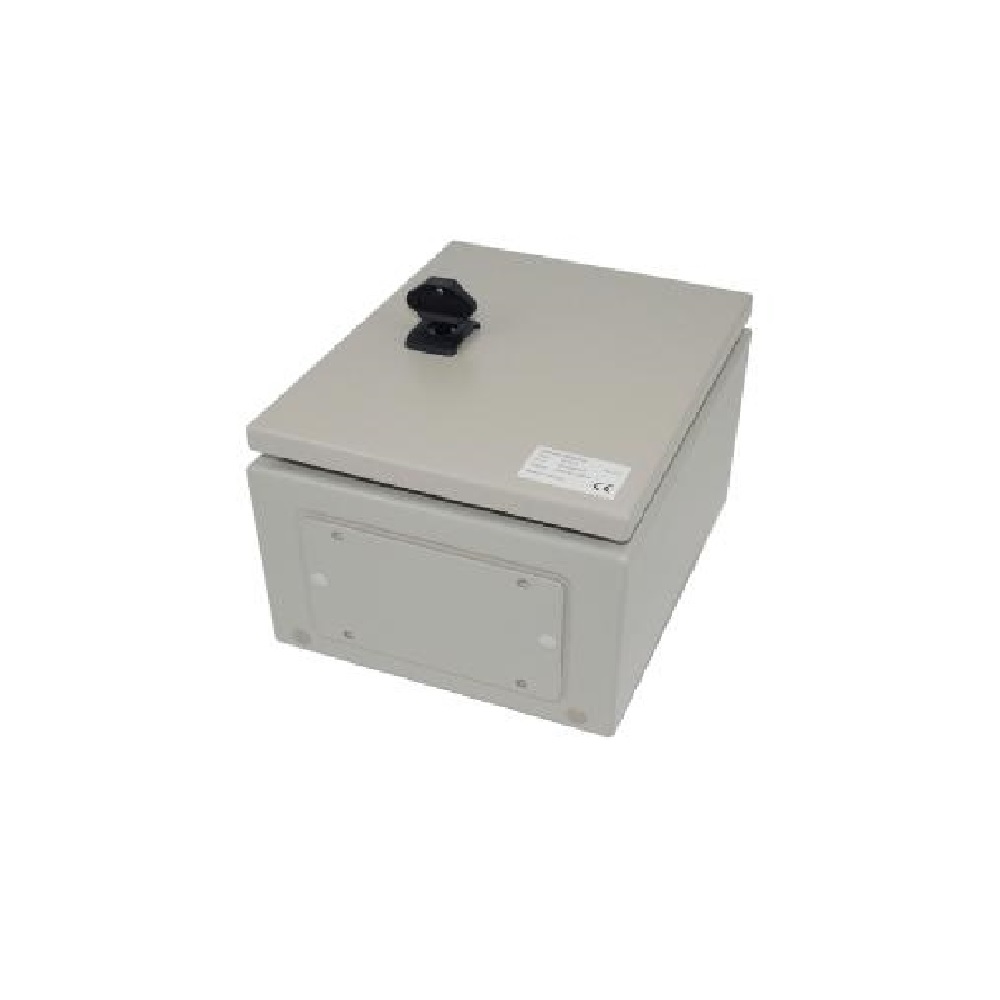

Zenitel POWER SUPPLY 115/230 VAC / 24 VDC- 3005020055-SPS-4

Login Register

Description
Datasheet

Power Supply

Brand: Zenitel

Model: SPS-4

Part Number:3005020055

Description

Power supply 115/230V AC to 24V DC with autoswitch relay for Main/UUPS supply and power failure contact no/nc
Compact steel housing for wall mounting
Screw terminals for ship's cable
Unmatched efficiency up to 95%
Active filtering of input transients
Large output capacitors
DC-OK relay contact

Technical Details

Input voltage 1	110 - 230 VAC
Input voltage 2	24 VDC Emergency
Output voltage	24 V - 28 VDC
Output current cont.	4.2 A
Operating temp.	-25 to +60 °C
IP-rating	IP-44

Download Datasheet
