SKU: ZTL027
Category: Speakers

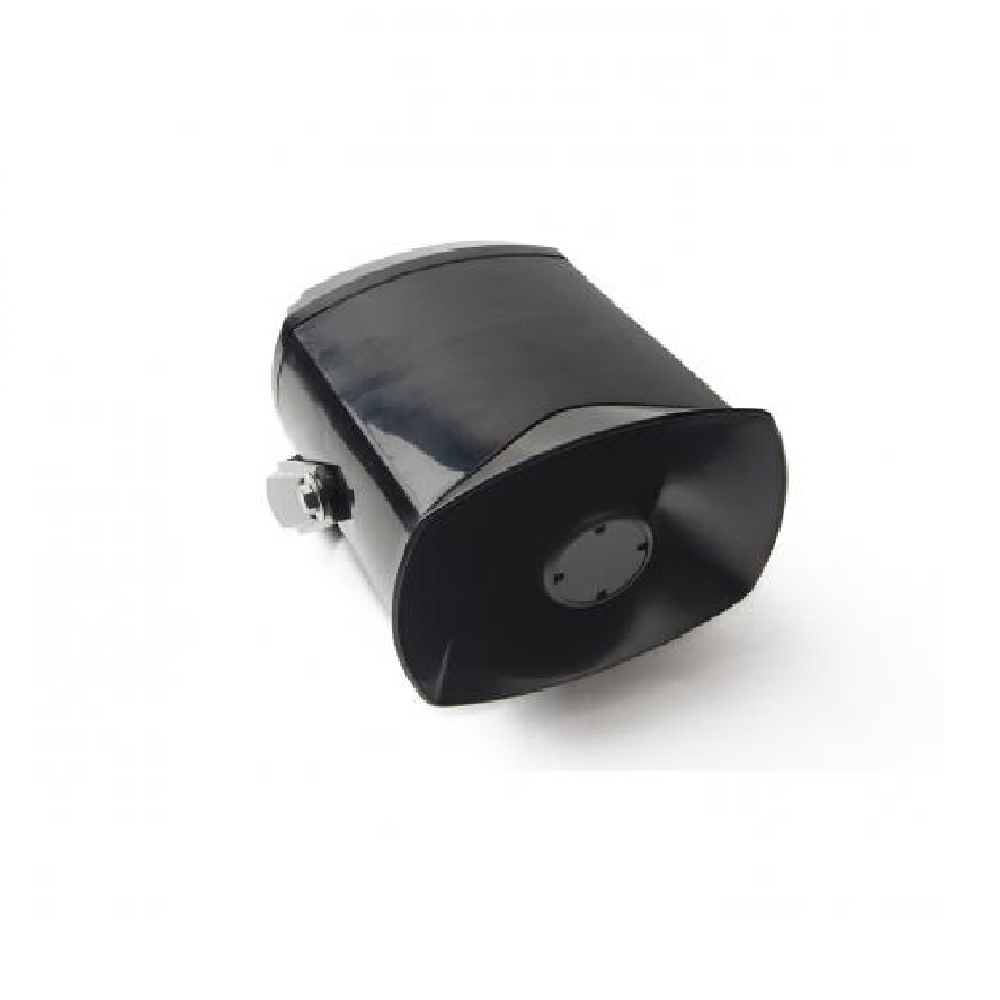

Horn Speaker
Brand: Zenitel
Model: DSP-15EEX
MNT
Part Number: 2340020012
Description
· 25W
· 1x plastic M20 cable gland (11-14mm)
· Tapping’s: 1.5W, 2.5W, 5W, 6.5W, 15W, 25W
· Ex db eb mb IIB+H2 T4 Gb
· Ex tb IIIC T105°C Db
Technical Details
· Material/Color: Anti-static PA/BBlack
· Mounting: Bracket
· Termination: e-chamber, push terminals
· Weight w/ transformer: 2,2 kg
· IP-rating: IP-66/67
· Max/min amb temp: 60°C/-50°C
· Rated/max. power: 25 W/30 W
· SPL 1W/1m = 106 dB
· SPL-Rated Power: 118 dB.
· Effective Frequency Range: 380–8000 Hz
· Dispersion (-6dB) 1 kHz/4 kHz: 120° / 37°
· Directivity factor Q (1 kHz/4 kHz): 4,5, 9,6
· Fuse Thermal Fuse: 84°C, 2x short-circuit protection fuses
· Environmental Condition: Exposed
