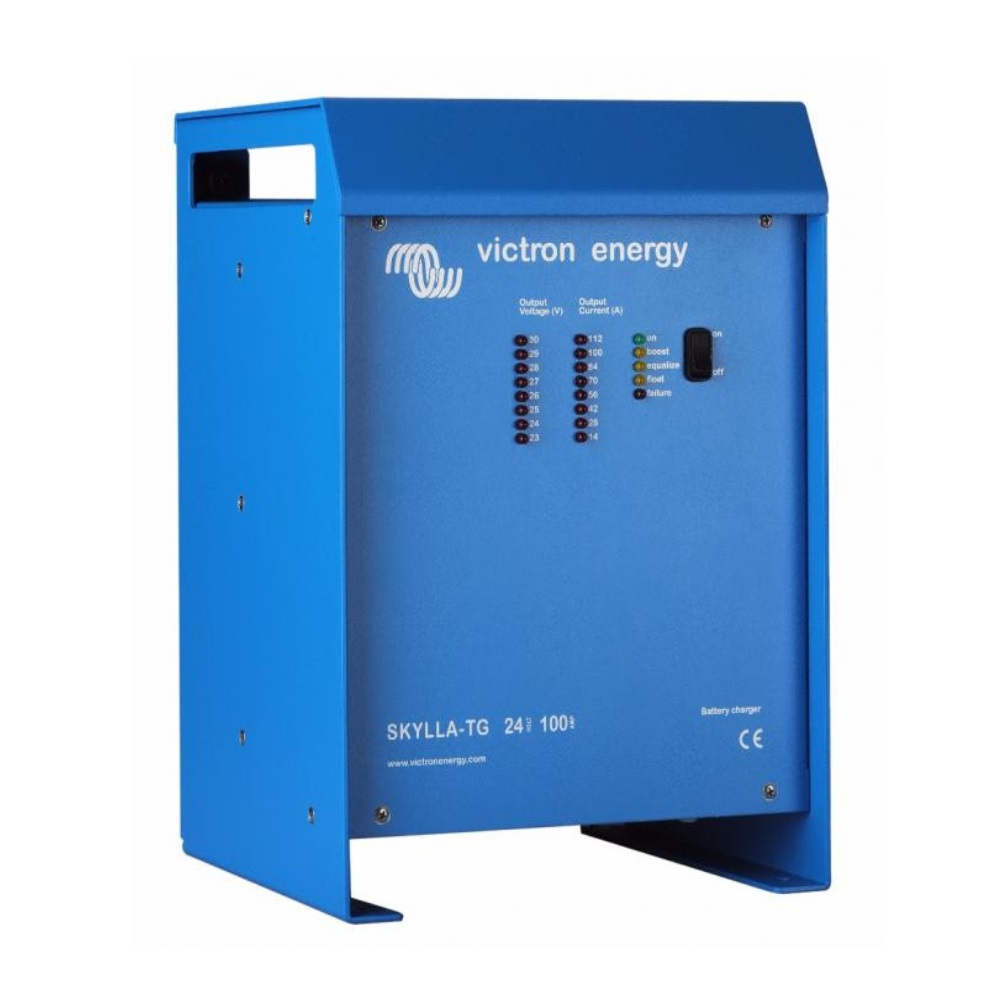

Battery Charger



Brand: Victron Energy

Model: Skylla

Part Number: SDTG2401003

Description

The microprocessor-controlled three-stage charging system is designed for versatility and efficiency, with adjustable output settings to accommodate various battery types. It is recommended for use with 24-volt battery banks that have a capacity between 500 and 1000 amp hours. This system features remote sensing of voltage, which compensates for any voltage drop in the cables, ensuring optimal performance. Additionally, a battery temperature sensor is included to monitor conditions closely. The unit can also function as a stand-alone power supply, and there are optional features available, such as a remote on/off switch and a remote voltage alarm. Weighing 22 lbs and measuring 14.4" x 9.9" x 10.1", this charging system is designed for practicality and ease of use.



Technical Details



  • Input voltage (V AC): 230
  • Input voltage range (V AC): 90-265
  • Frequency (Hz): 45-65
  • Charge voltage: 24VDC
  • Charge current house battery: 100A
  • Battery Capacity: 500-1000 Ah
  • Weight: 10 kg
  • Dimension HxWxD in mm: 365x250x257
