SKU: VEGABAR39
Category: Pressure Sensor
Pressure Sensor
Brand:
Vega
Model: Vegabar 39
Description
The

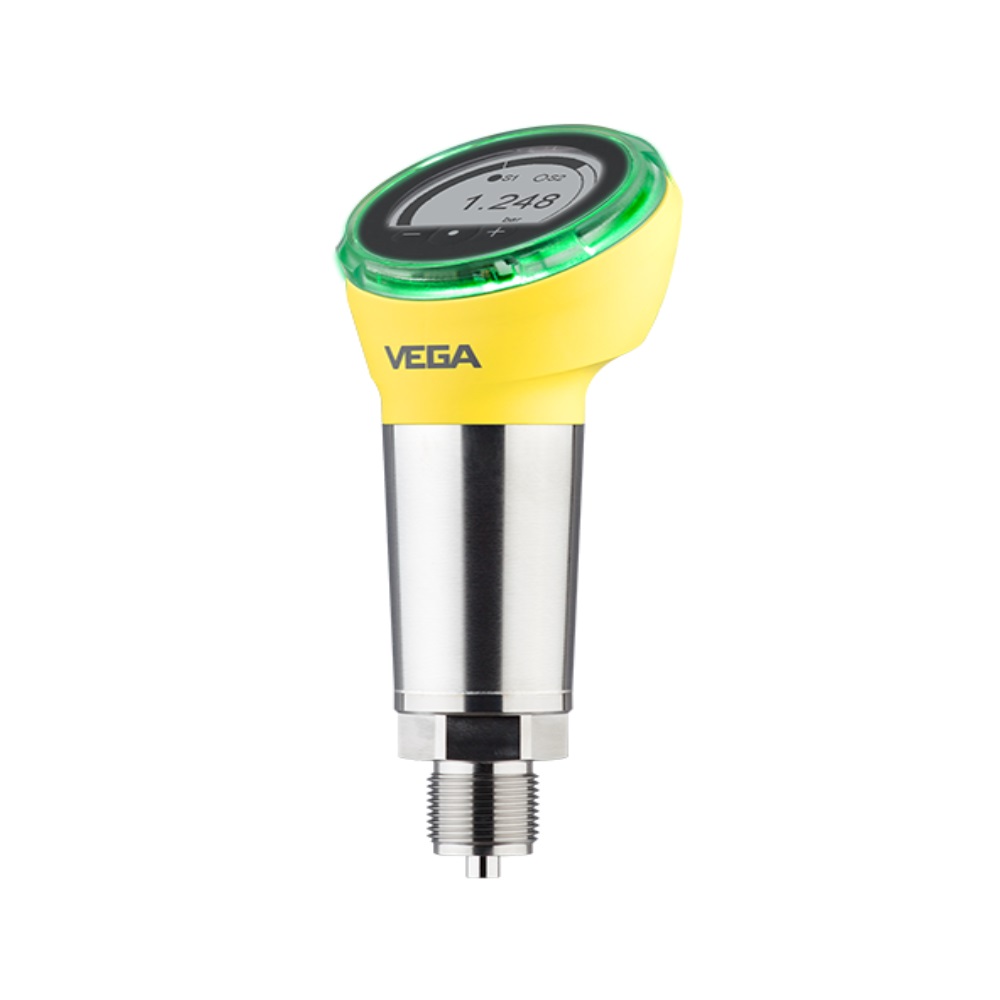

VEGABAR 39 is a universally applicable pressure sensor with switching function
and metallic measuring cell. It is used for measuring. Gases, vapors, and
liquids. Even with high requirements for robustness and hygiene, the device
records the measured values with high accuracy.
Technical
Data
|
Measuring
range - Pressure |
-1
... 1000 bar [Bar - kPa - psi] |
|
Process
temperature |
-40
... 130 °C [°C - °F] |
|
Accuracy |
0.3
% |
|
Materials,
wetted parts |
316L |
|
Threaded
connection |
≥
G½, ≥ ½ NPT |
|
Hygenic
fittings |
Clamp
≥ 2", DN50 - DIN32676, ISO2852 Clamp
≥ 1" - DIN32676, ISO2852 Clamp
≥ 1½" - DIN32676, ISO2852 Slotted
nut ≥ DN25 - DIN 11851 Slotted
nut ≥ DN32 - DIN 11851 SMS
1145 DN51 SMS
DN38 Hygienic
fittings ≥ DN25 - DIN11864-1-A Hygienic
fittings ≥ DN40 - DIN11864-1-A Varivent
N50-40 SMS
DN25 Ingold
connection PN10 Varivent
F25 |
|
Housing
material |
Plastic |
|
Protection
rating |
IP66/IP67 |
|
Output |
4
… 20 mA Three-wire
(PNP/NPN, 4 … 20 mA) IO-Link |
|
Ambient
temperature |
-40
... 70 °C |
