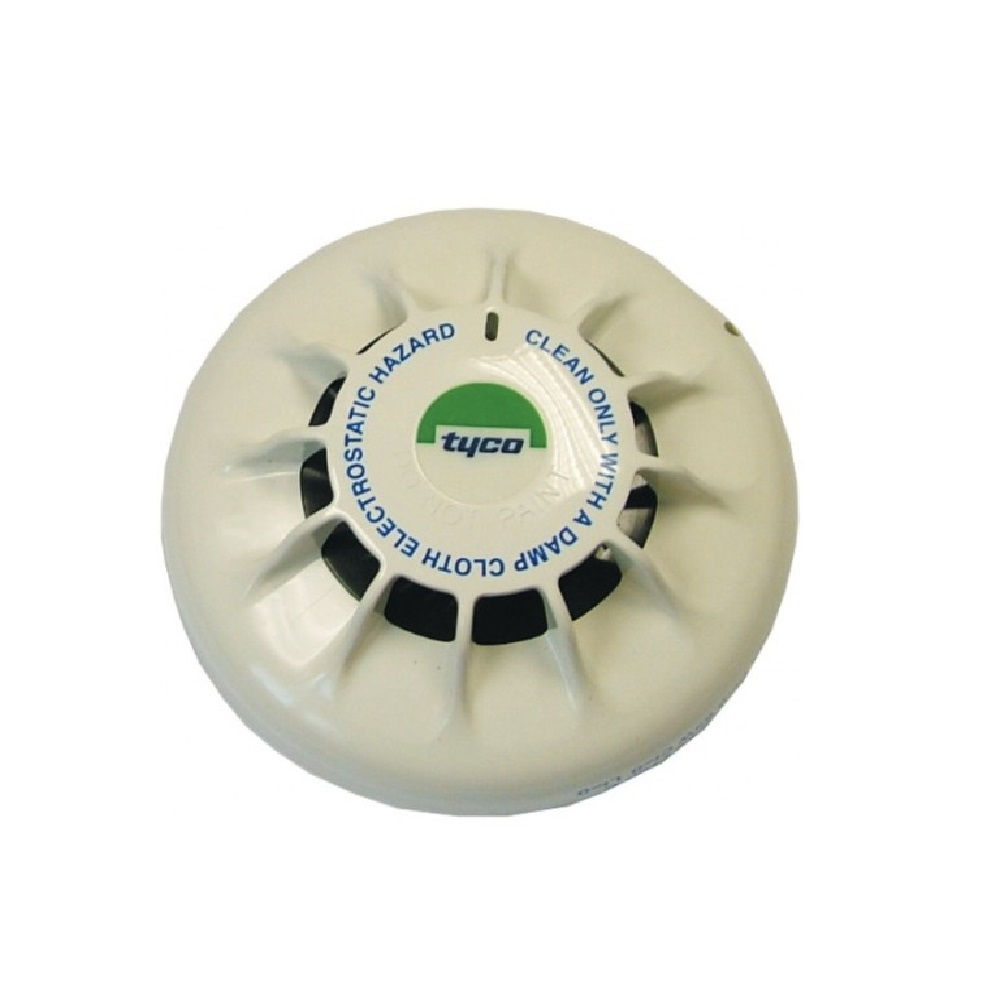

Tyco 811PHEXN Marine Optical Smoke+Heat Detector-516.800.534

Tyco 811PHEXN Marine Optical Smoke+Heat Detector-516.800.534

Tyco 811PHEXN Marine Optical Smoke+Heat Detector-516.800.534

Brand:Tyco

Enquire Now

For pricing and availability, please send an email to info@industrytechstore.com

SKU: TYC047

Category: Smoke and Heat Detectors

Tags Tyco , 811PHEXN , 811 PHEXN , 811-PHEXN , Marine Optical Smoke+ Heat Detector , Marine Optical Smoke Detector , Marine Optical Heat Detector , Heat Detector , Smoke Detector , 516.800.534 , 516800534 , 516-800-534

Description

Optical Smoke & Heat Detector
Brand: Tyco
Model: Marine 811PHExn

Description
The 811PHEx marine Intrinsically Safe Optical Smoke and Heat Detector forms part of the 800Ex Intrinsically Safe Series of MZX Addressable Fire Detectors. The detector plugs into a 5BEX base. The detector is designed to transmit to a remote MINERVA MZX fire controller digital signal that represent the status of the optical smoke and heat elements of the detector.

Technical Details

Optical smoke-only detector (sensitivity: high, normal, or low)

HPO smoke detector (sensitivity: high, normal, or low)

Heat-only rate-of-rise (A1R) detector (no sensitivity selection)

Heat-only fixed temperature of 60 oC (A2S) (no sensitivity selection)

Optical (sensitivity high, normal, or low) combined with a heat-fixed temperature of 60 oC (A2S)

HPO (sensitivity high, normal, or low) combined with a heat-fixed temperature of 60 oC (A2S)

These detectors are designed to comply with EN/IEC 60079-0:2006.

EN/IEC 60079-11:2007 and EN/IEC 61241-11:2006 for intrinsically safe apparatus
