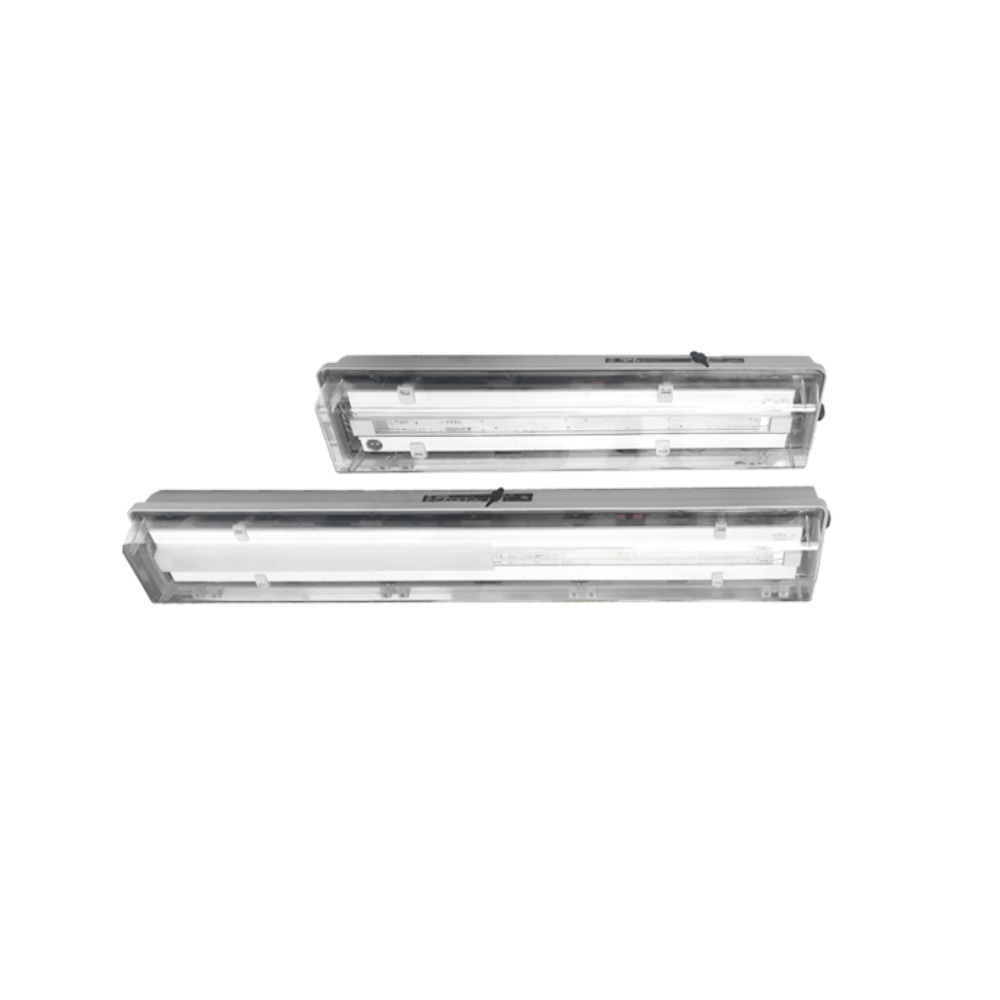

TEPEx Linear LED light Fitting-PSF LED

TEPEx Linear LED light Fitting-PSF LED

TEPEx Linear LED light Fitting-PSF LED

Brand:TEPEx

Enquire Now

For pricing and availability, please send an email to info@industrytechstore.com

SKU: PSFLED

Category: Light Fixtures

Tags TEPEx , Linear LED light fitting , LED light fitting , light fitting , Light , PSF LED , PSF , TEPEx Linear LED light Fitting-PSF LED

Description
Datasheet

LED

Brand: TEPEX

Model: PSF LED

Partner Number: LVR500-24

Description

Housing: SMC polyester plastic reinforced with glass fiber, color RAL 7038
Diffuser: PC polycarbonate plastic
Gasket: silicone
Central locking: can be opened/closed using a socket key SW8, hinged lamp cover
The light fitting is normally supplied with a socket key, two Ex e cable glands M25, two Ex e plugs M25, and a mounting set PSF 30-110.

Technical Data

Apparatus category	II 2GD
Explosion protection	Ex db eb mb op is IIC T4 Gb Ex tb op is IIIC T80°C Db
Enviroment temperature	-30°C ÷ +55°C
Degree of protection	IP66
Rated voltage	110V – 240V AC ± 10%; 220V – 250V DC ± 10%

Download Datasheet
