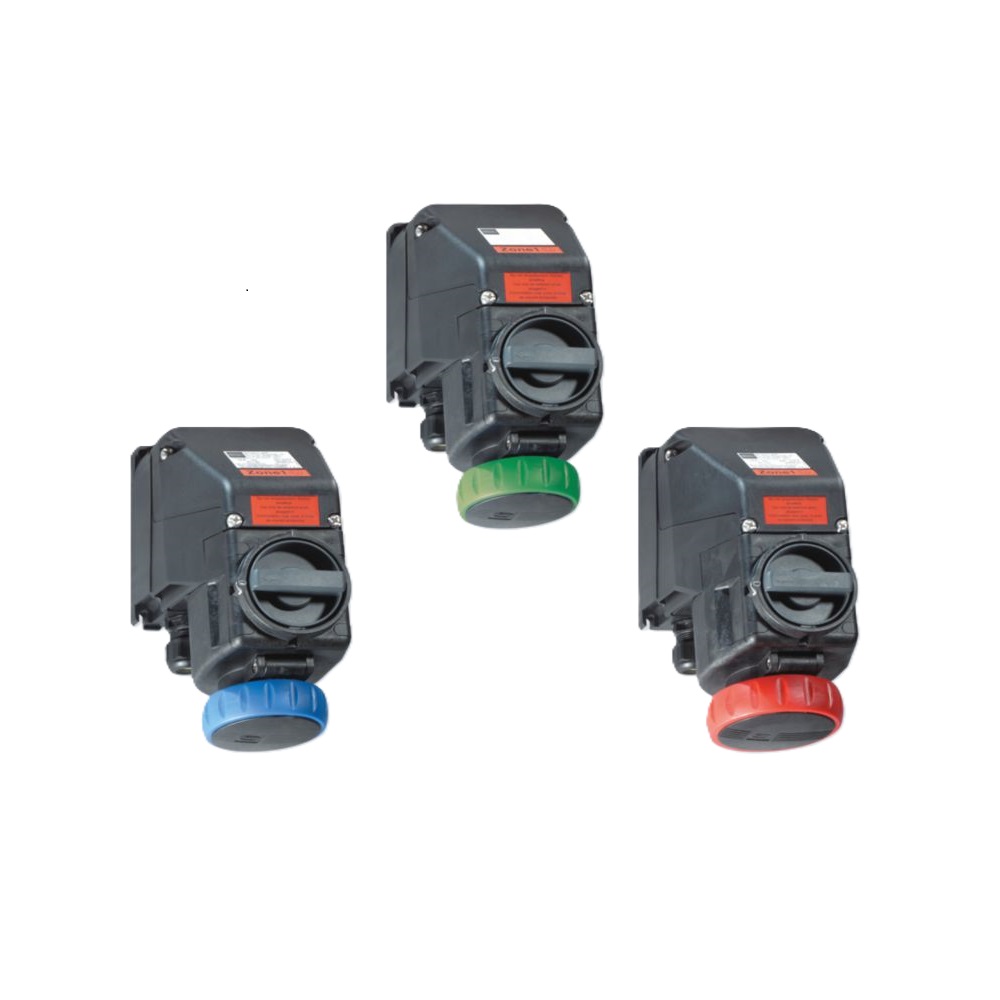

Stahl Wall-Mounting Sockets 16 A Series 8570/11-273926

Stahl Wall-Mounting Sockets 16 A Series 8570/11-273926

Stahl Wall-Mounting Sockets 16 A Series 8570/11-273926

Brand:Stahl

Enquire Now

For pricing and availability, please send an email to info@industrytechstore.com

SKU: STAHL-273926

Category: Plugs and Sockets

Tags Stahl , Wall-mounting Sockets , Sockets , Socket , Plug , Series 8570/11 , Art. No.: 273926 , 273926 , Stahl Wall-mounting Sockets 16 A Series 8570/11-273926 , Stahl 273926 , Stahl Sockets

Description
Datasheet

Sockets

Brand: Stahl

Model: 8570/11

Partner Number: 273926

Technical Data

Product Type: 8570/11-406-S-01-0-00-XXX
Product Description: Wall-mounting socket 16 A
min. ambient temperature: -50 °C
Entry 2 type: 8290/3-M25
max. ambient temperature: +35 °C
Entry 1 type: 8161/7-M25-1707-LT
Rated operational current: 16 A
Certificates: ATEX (PTB), Brazil (ULB), China (CQST), IECEx (PTB), India (PESO), Korea (KTL), Taiwan (ITRI)
Rated operational voltage: 380 to 415 V AC
Frequency range: 50/60 Hz
Silicone-free: No
Color code: red
Coding (clock hour position): 6
Detailed number of poles: 3 P + PE
