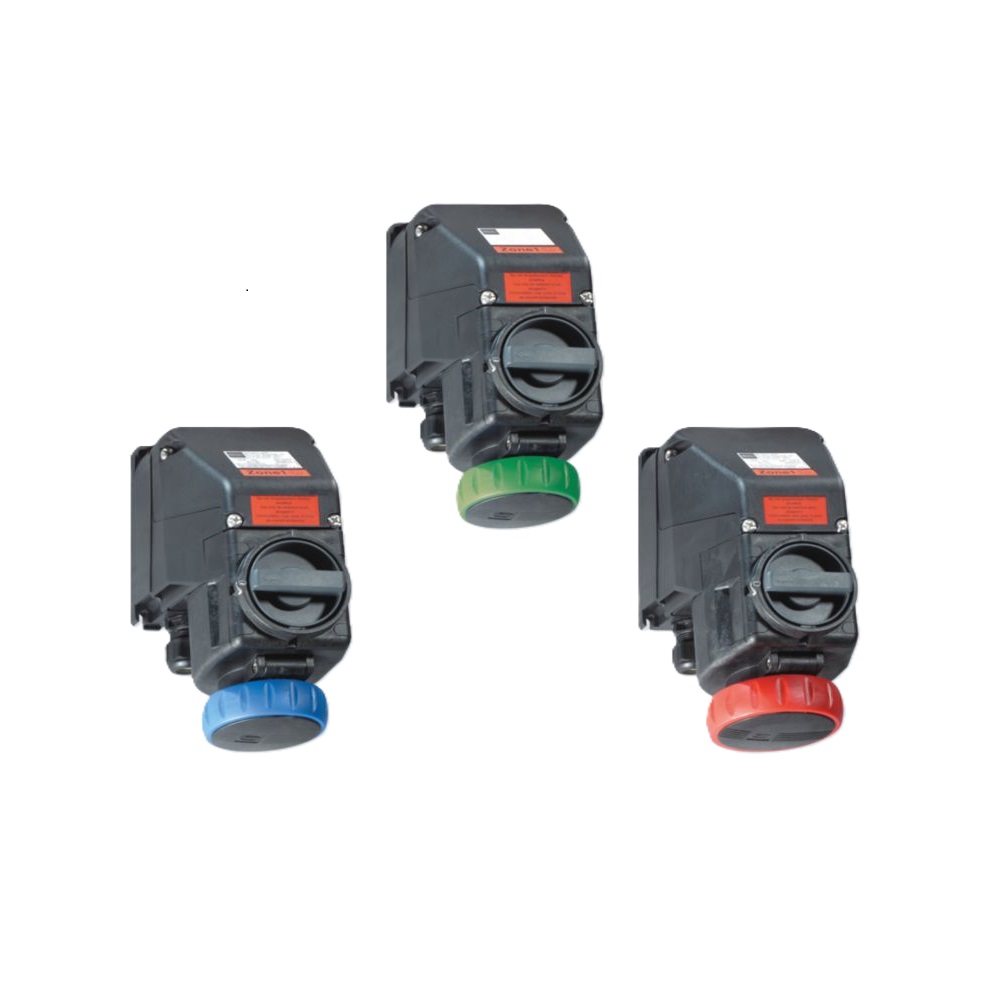

Stahl Wall-Mounting Sockets 16 A Series 8570/11-273923

Stahl Wall-Mounting Sockets 16 A Series 8570/11-273923

Stahl Wall-Mounting Sockets 16 A Series 8570/11-273923

Brand:Stahl

Enquire Now

For pricing and availability, please send an email to info@industrytechstore.com

SKU: STAHL-273923

Category: Plugs and Sockets

Tags Stahl , Wall-mounting Sockets , Series 8570/11 , 8570/11 , Art. No.: 273923 , 273923 , socket , plug , Rstahl , Stahl Wall-Mounting Sockets 16 A Series 8570/11-273923

Description
Datasheet

Sockets

Brand: Stahl

Model: 8570/11

Partner Number: 273923

Technical Data

Product Type: 8570/11-403-S-01-0-00-XXX
Product Description: Wall-mounting socket 16 A
min. ambient temperature: -50 °C
Entry 2 type: 8290/3-M25
max. ambient temperature: +35 °C
Entry 1 type: 8161/7-M25-1707-LT
Rated operational current: 16 A
Certificates: ATEX (PTB), Brazil (ULB), China (CQST), IECEx (PTB), India (PESO), Korea (KTL), Taiwan (ITRI)
Rated operational voltage: 380 V AC
Frequency range: 50 Hz
Silicone-free: No
Color code: red
Coding (clock hour position): 3
Detailed number of poles: 3 P + PE
