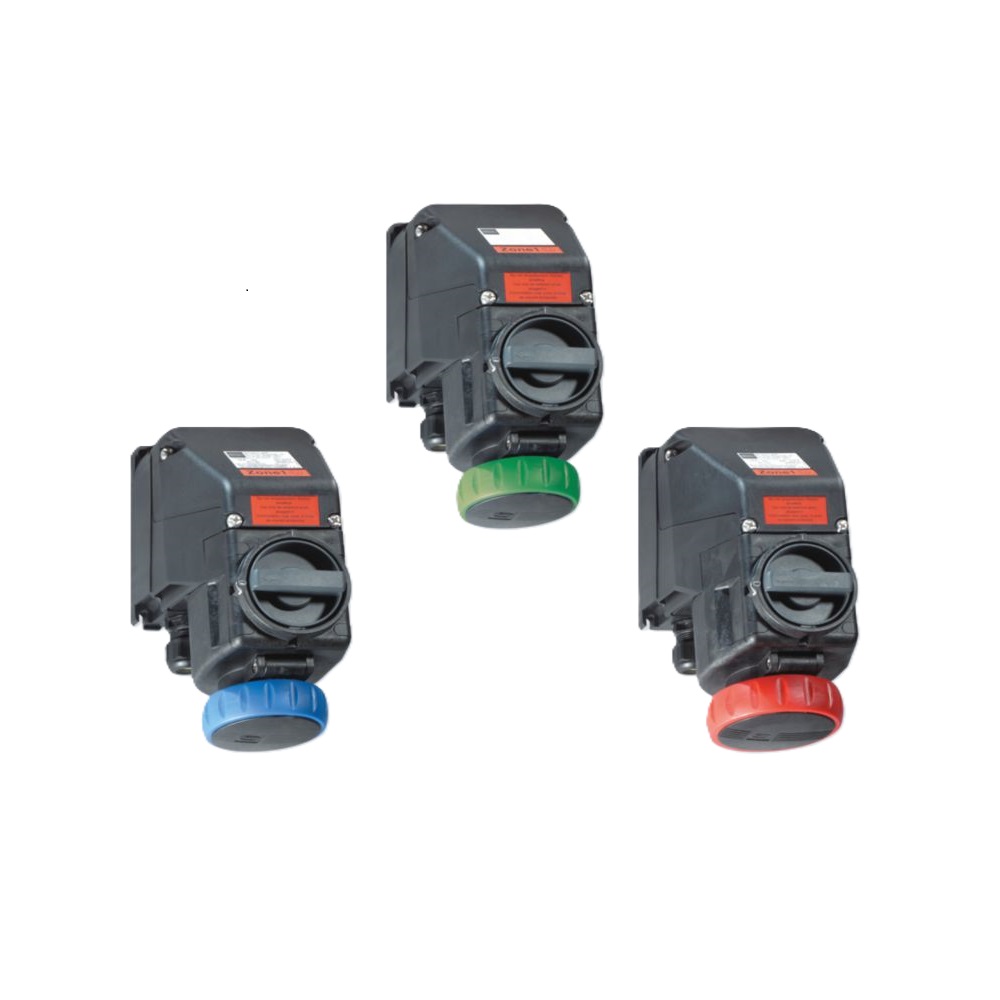

Stahl Wall-Mounting Sockets 16 A Series 8570/11-273921

Stahl Wall-Mounting Sockets 16 A Series 8570/11-273921

Stahl Wall-Mounting Sockets 16 A Series 8570/11-273921

Brand:Stahl

Enquire Now

For pricing and availability, please send an email to info@industrytechstore.com

SKU: STAHL-273921

Category: Plugs and Sockets

Tags Stahl , Wall-mounting Sockets , Plugs , socket , Art. No.: 273921 , 273921 , Stahl Wall-Mounting Sockets 16 A Series 8570/11-273921 , Stahl 273921 , Stahl Wall-Mounting Sockets , Stahl Sockets

Description
Datasheet

Sockets

Brand: Stahl

Model: 8570/11

Partner Number: 273921

Technical Data

Product Type: 8570/11-511-S-01-0-00-XXX
Product Description: Wall-mounting socket 16 A
min. ambient temperature: -50 °C
Entry 2 type: 8290/3-M25
max. ambient temperature: +35 °C
Entry 1 type: 8161/7-M25-1707-LT
Rated operational current: 16 A
Certificates: ATEX (PTB), Brazil (ULB), China (CQST), IECEx (PTB), India (PESO), Korea (KTL), Taiwan (ITRI)
Rated operational voltage: 250/440 to 265/460 V AC
Frequency range: 60 Hz
Silicone-free: No
Colour code: red
Coding (clock hour position): 11
Detailed number of poles: 3 P + N + PE
