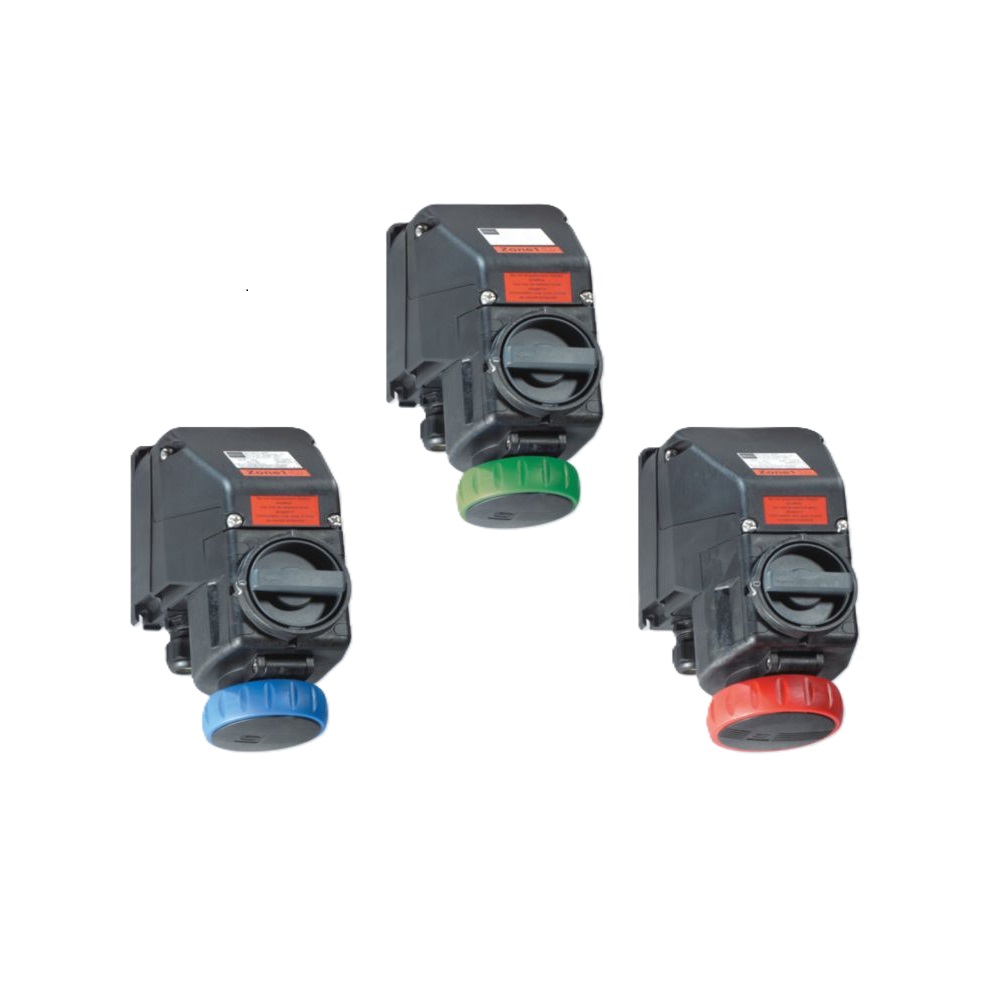

Stahl Wall-Mounting Sockets 16 A Series 8570/11-273899

Stahl Wall-Mounting Sockets 16 A Series 8570/11-273899

Stahl Wall-Mounting Sockets 16 A Series 8570/11-273899

Brand:Stahl

Enquire Now

For pricing and availability, please send an email to info@industrytechstore.com

SKU: STAHL-273899

Category: Plugs and Sockets

Tags Stahl , Wall-mounting Sockets , sockets , socket , plug , Series 8570/11 , Art. No.: 273899 , 273899 , Rstahl , 273936 , 273928 , 273932 , 273897 , Stahl Wall-Mounting Sockets 16 A Series 8570/11-273899. , Stahl 273899 , Stahl Sockets

Description
Datasheet

Sockets

Brand: Stahl

Model: 8570/11

Partner Number: 273899

Technical Data

Product Type: 8570/11-507-S-01-0-00-XXX
Product Description: Wall-mounting socket 16 A
min. ambient temperature: -50 °C
Entry 2 type: 8290/3-M25
max. ambient temperature: +35 °C
Entry 1 type: 8161/7-M25-1707-LT
Rated operational current: 16 A
Certificates: ATEX (PTB), Brazil (ULB), China (CQST), IECEx (PTB), India (PESO), Korea (KTL), Taiwan (ITRI)
Rated operational voltage: 277/480 to 288/500 V AC
Frequency range: 50/60 Hz
Silicone-free: No
Color code: black
Coding (clock hour position): 7
Detailed number of poles: 3 P + N + PE

Download Datasheet
