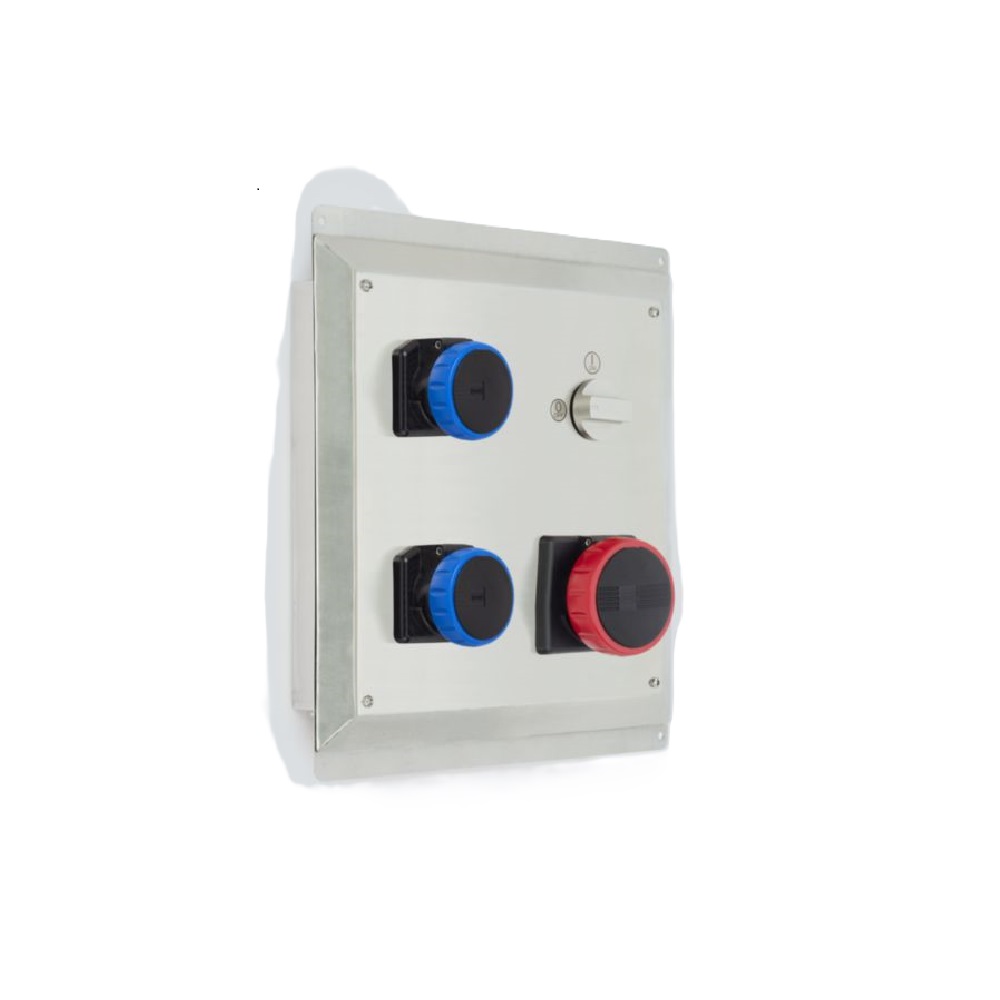

Stahl Wall-Mounted Socket Distributors for Clean Rooms Series 8150/5-V88-259648

Stahl Wall-Mounted Socket Distributors for Clean Rooms Series 8150/5-V88-259648

Stahl Wall-Mounted Socket Distributors for Clean Rooms Series 8150/5-V88-259648

Brand:Stahl

Enquire Now

For pricing and availability, please send an email to info@industrytechstore.com

SKU: STAHL-259648

Category: Plugs and Sockets

Tags Stahl , Wall-mounted socket , Socket , Wall-mounted socket distributors , 8150/5-V88-38127-2306-4506-2306 , series 8150/5 , Art. No.: 259648 , 259648 , Rstahl

Description
Datasheet

Socket

Brand: Stahl

Model: 8150/5-V88

Partner Number: 259648

Technical Data

max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Certificates: ATEX (PTB), IECEx (PTB), India (PESO)
Number of sockets 1: 2
Rated operating voltage socket 1: 200 ... 250 V
Rated operating current socket 1: 16 A
Number of poles on socket 1: 3
Number of sockets: 2: 1
Socket 2 type: 8571/18
Rated operating voltage socket 2: 200/346 to 240/415 V AC
Rated operational current socket 2: 32 A
Number of poles on socket 2: 5
