For pricing and availability, please send an email to info@industrytechstore.com
SKU: STAHLTEF4600
Category: Helideck systems
Light Control
Brand:
Stahl
Model: TEF4600
Partner Number: 1SAE231111R0140
Description

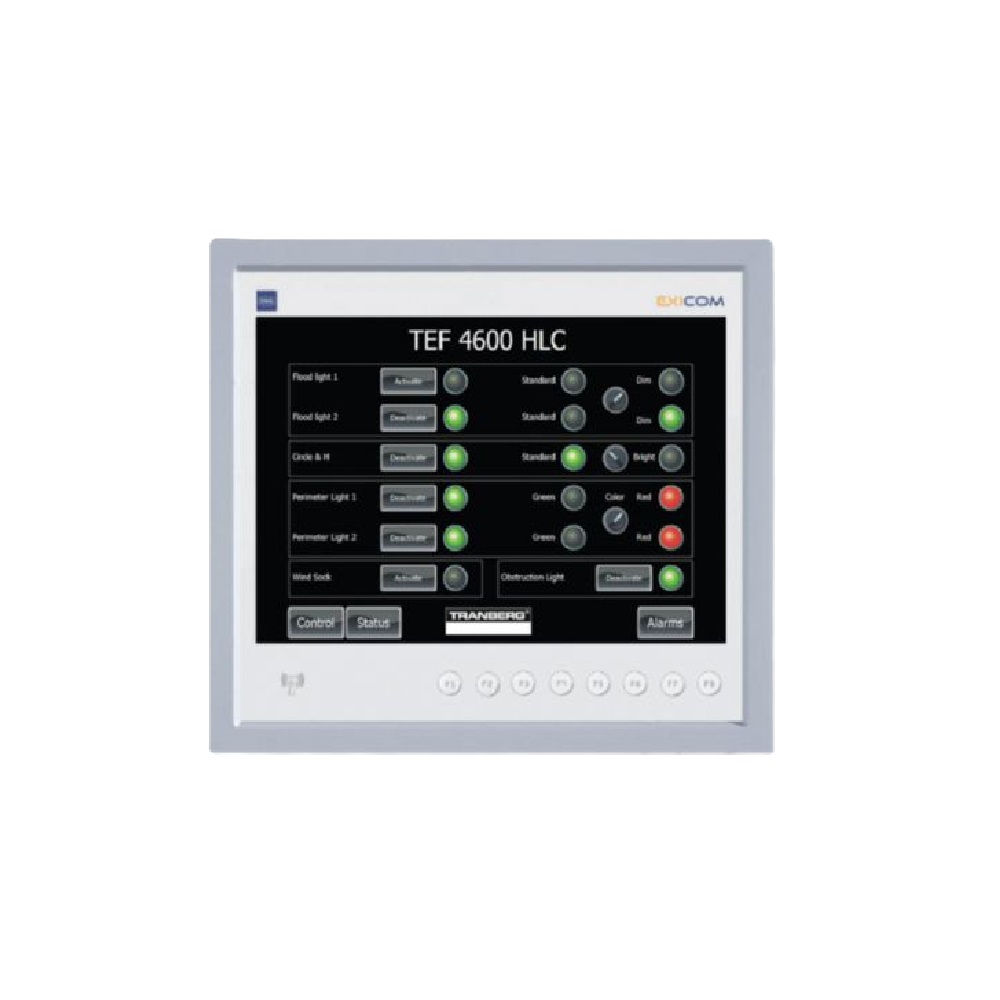

The TEF 4600 integrated Helideck Lights Control is the first integrated control system for easy and safe control and monitoring of all lights installed in a helideck. The control system can be delivered for use in both safe areas and Zone 1 areas. All types of Tranberg lights can be connected (perimeter lights, floodlights, obstruction lights, illuminated windsocks, Circle & H lights, status lights, etc.). Central to the system is a touch panel. Using an intuitive, user-friendly menu, the user can simply set the lights on or off or dim respective lights when needed.
Technical Data
|
Connections |
Ethernet connection to operator panels. Optional hardwired connection to local control
panels. |
|
Degree
of Protection |
IP66 / IP67 |
|
Dimensions ( WxHxD) |
Non-Ex control cabinet: 600 mm x 1800 mm x 300 mm
Zone 1 cabinet: Flexible size and shape |
|
Power
Supply |
Single 230 V AC power supply, UPS supply and
monitoring available |
