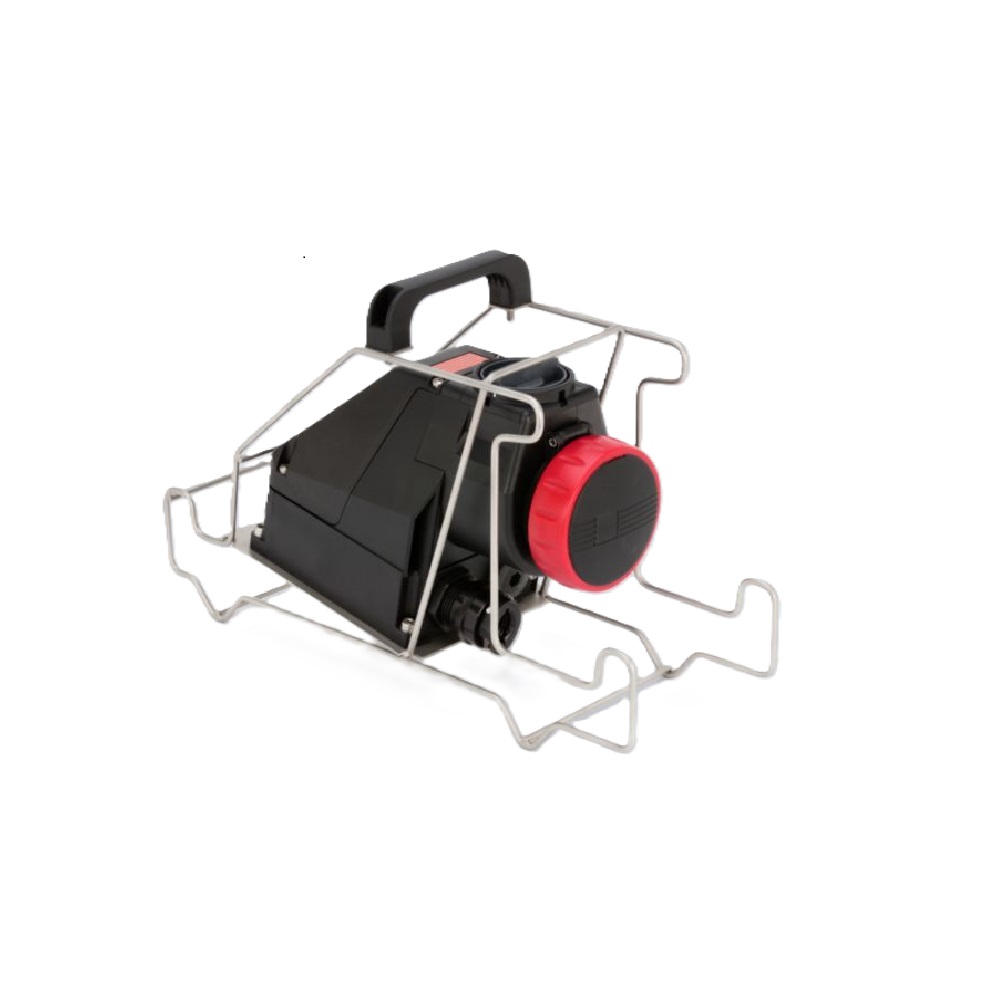

Stahl Coupler Sockets 16 A Series 8570/16-274049

Stahl Coupler Sockets 16 A Series 8570/16-274049

Stahl Coupler Sockets 16 A Series 8570/16-274049

Brand:Stahl

Enquire Now

For pricing and availability, please send an email to info@industrytechstore.com

SKU: STAHL-274049

Category: Plugs and Sockets

Tags Stahl , Coupler Sockets , Sockets , Series 8570/16 , Art. No.: 274049 , 274049 , socket , Rstahl , coupler , Stahl Coupler Sockets 16 A Series 8570/16-274049 , Stahl 274049

Description
Datasheet

Socket

Brand: Stahl

Model: 8570/16

Partner Number: 274049

Technical Data

Product Type: 8570/16-506-S-26-X-XX-XXX
Product Description: Coupler socket 16 A
min. ambient temperature: -50 °C
Entry 2 type: 8290/3-M25
Entry 1 type: CMP-25A2F100 KLE MsNi
max. ambient temperature: +35 °C
Rated operational current: 16 A
Certificates: ATEX (PTB), Brazil (ULB), China (CQST), IECEx (PTB), India (PESO), Korea (KTL), Taiwan (ITRI)
Frequency range: 50/60 Hz
Silicone-free: No
Color code: red
Coding (clock hour position): 6
Detailed number of poles: 3 P + N + PE
