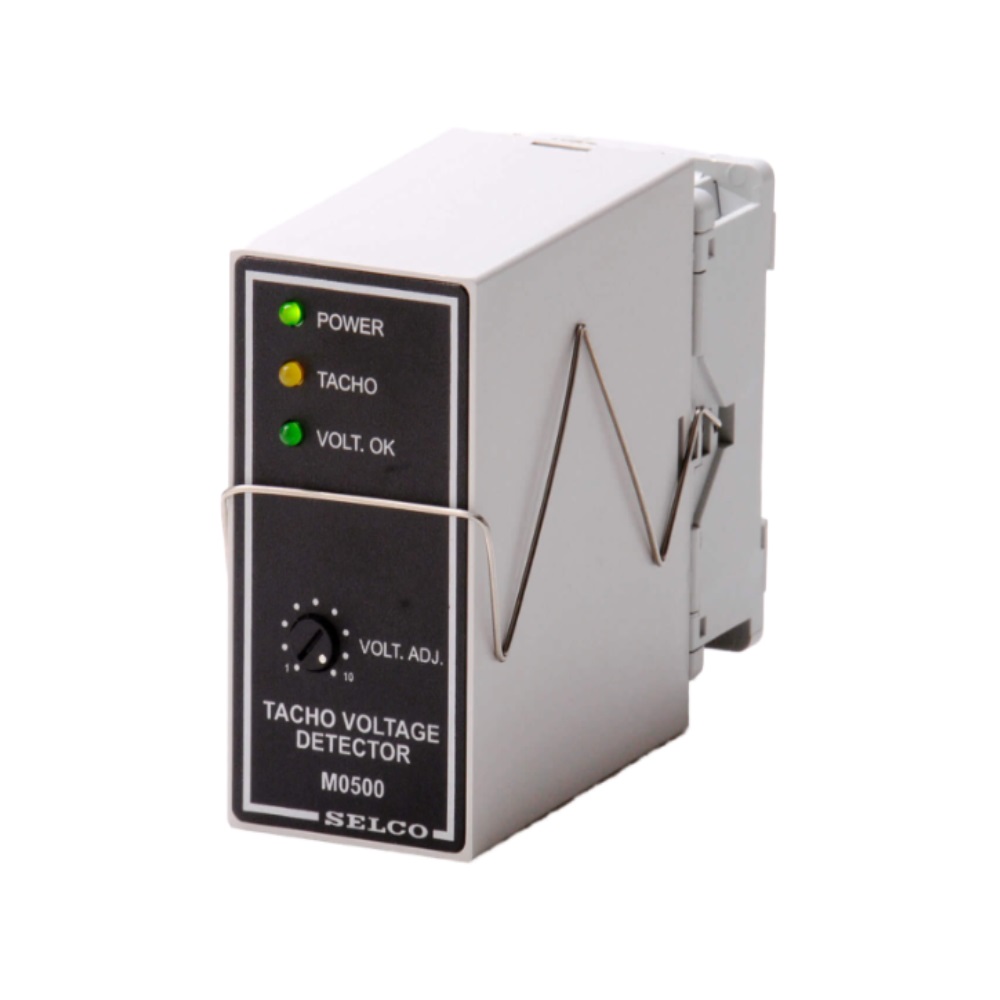

Selco Tacho Voltage Detector 400V / 12-24 DC - M0500.0080

Login Register

Description
Datasheet

Voltage Detector

Brand: Selco

Model: M0500

Part Number: M0500

Description

The SELCO M0500 is an accessory unit for the SELCO M2000 Engine Controller and the M2100 Emergency Controller. The M0500 reads the engine speed from the frequency of the generator output voltage. The speed reading is converted to a square wave signal, and this signal is provided on a dedicated output.

Technical Data

Voltage supply: 12-24V DC -30% / +30% (8-32V DC)
Consumption: 40mA
Frequency range: 0-100Hz
Operating temperature: -20° to +70°C

Download Datasheet
