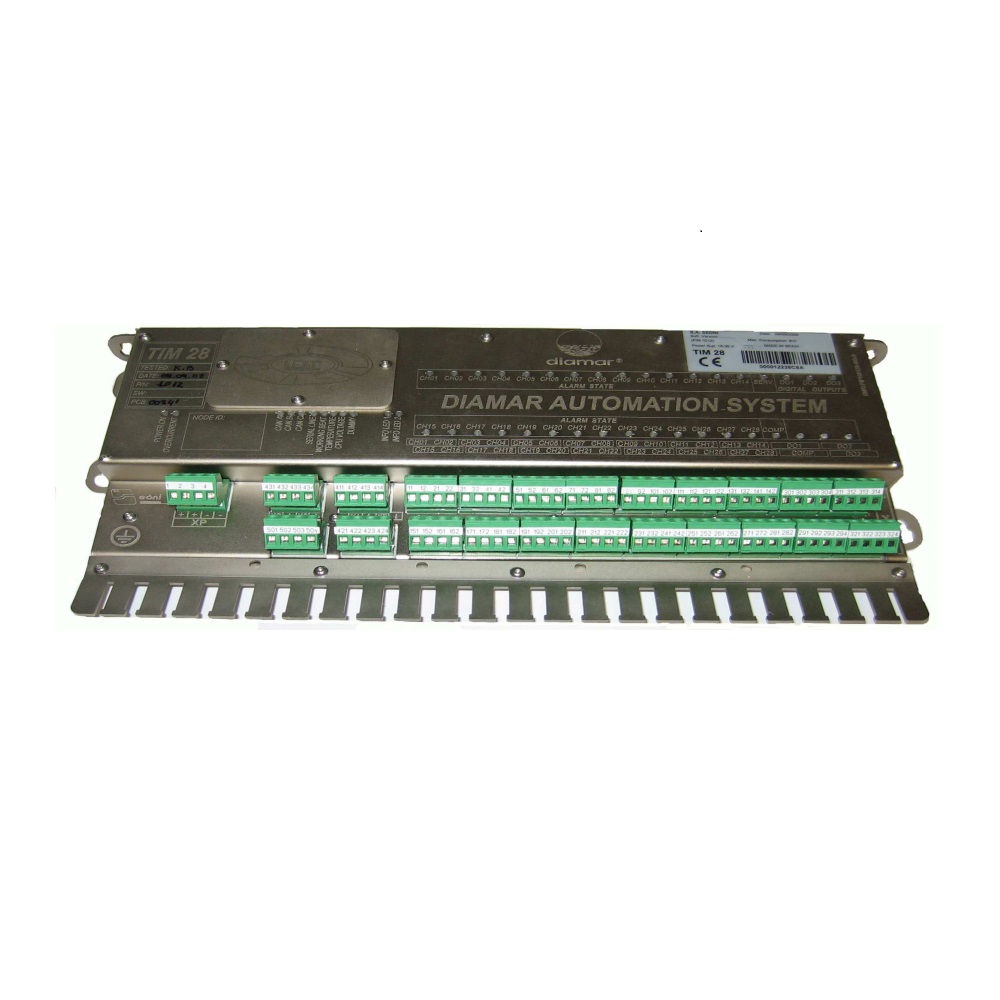

Sedni Thermocouple Input Module-TIM28

Sedni Thermocouple Input Module-TIM28

Sedni Thermocouple Input Module-TIM28

Brand:Sedni

Enquire Now

For pricing and availability, please send an email to info@industrytechstore.com

SKU: TIM-28

Category: Modules

Tags Sedni , Thermocouple Input Module , Input Module , Module , TIM28 , Sedni Thermocouple Input Module-TIM28 , Sedni Module , Sedni TIM28

Description
Datasheet

Module

Brand: Sedni

Model: TIM28

Description

The Thermocouple Input Module, TIM28, is a local acquisition module for thermocouple input signals, part of SEDNI’s DIAMAR® Automation System. This module can work with different types of thermocouple sensors, as type: J, K, E, T, N, R, S, or B, and a PT100 input (for temperature compensation). Signals are processed internally and transferred through 3 CAN-BUS lines (triple redundancy) to the remote stations, where all monitoring and control functions are available for the operators.

Features

Analog inputs: 28 thermocouple channels and 1 PT100 channel.
3 digital outputs channels.
Integrated sensor for temperature monitoring in PCB and for temperature compensation.
Voltage monitoring in microprocessor.
Suitable for direct mounting in engine room units (in cabin or console). Possibility to be mounted on engines, etc… (4G).
Prepared to be installed directly in the Main Switch Board and starters.
Galvanic Isolation between power, process and inputs/outputs.
LED status indication.
No jumper or switch channel configuration.
Sensor excitation from module.
