SKU: SCH148
Category: Electrical Accessories

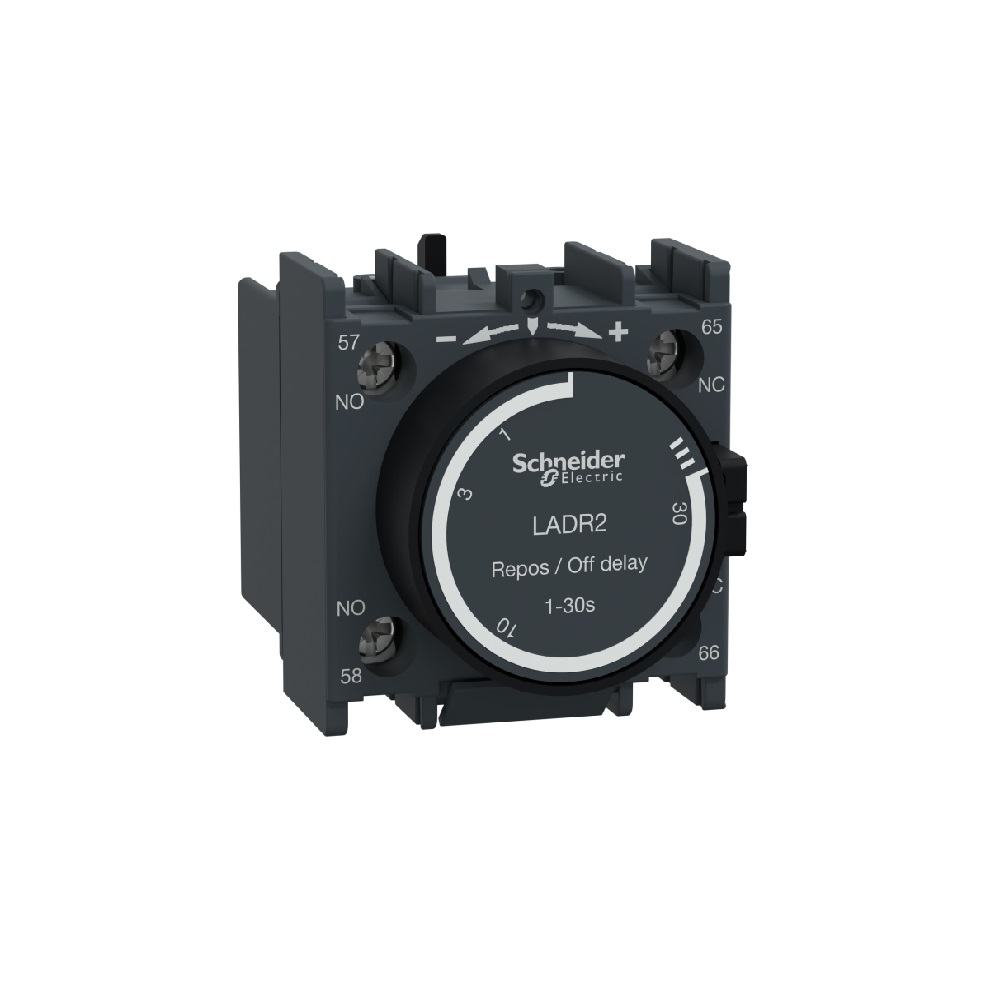

Contact Block
Brand: Schneider
Partner Number:
LADR2
Description
TeSys D
time delay auxiliary contact block, for contactors LC1D, LC1F and control
relays CAD. It provides 1NO+1NC contacts rated up to 10A 690V AC, Off-delay
setting range 1-30s, connection by screw clamp terminals. Clip-on front
mounting, it procures high reliability and durability. Multi standards
certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach).
Technical Data
Range | TeSys TeSys Deca |
Product or
component type | Time delay
auxiliary contact block |
Range
compatibility | TeSys Deca CAD TeSys Deca LC1D TeSys F LC1F TeSys F CR1F |
Mounting
location | Front |
Pole contact
composition | 1 NO + 1 NC |
Rated
insulation voltage | 690 V conforming
to IEC 60947-5-1 600 V conforming
to UL 60947-5-1 600 V conforming
to CSA C22.2 No 60947-5-1 |
Timer type | Off delay |
