SKU: SCH127
Category: Relay
Relay
Brand:
Schneider
Model:
LRD07
Description

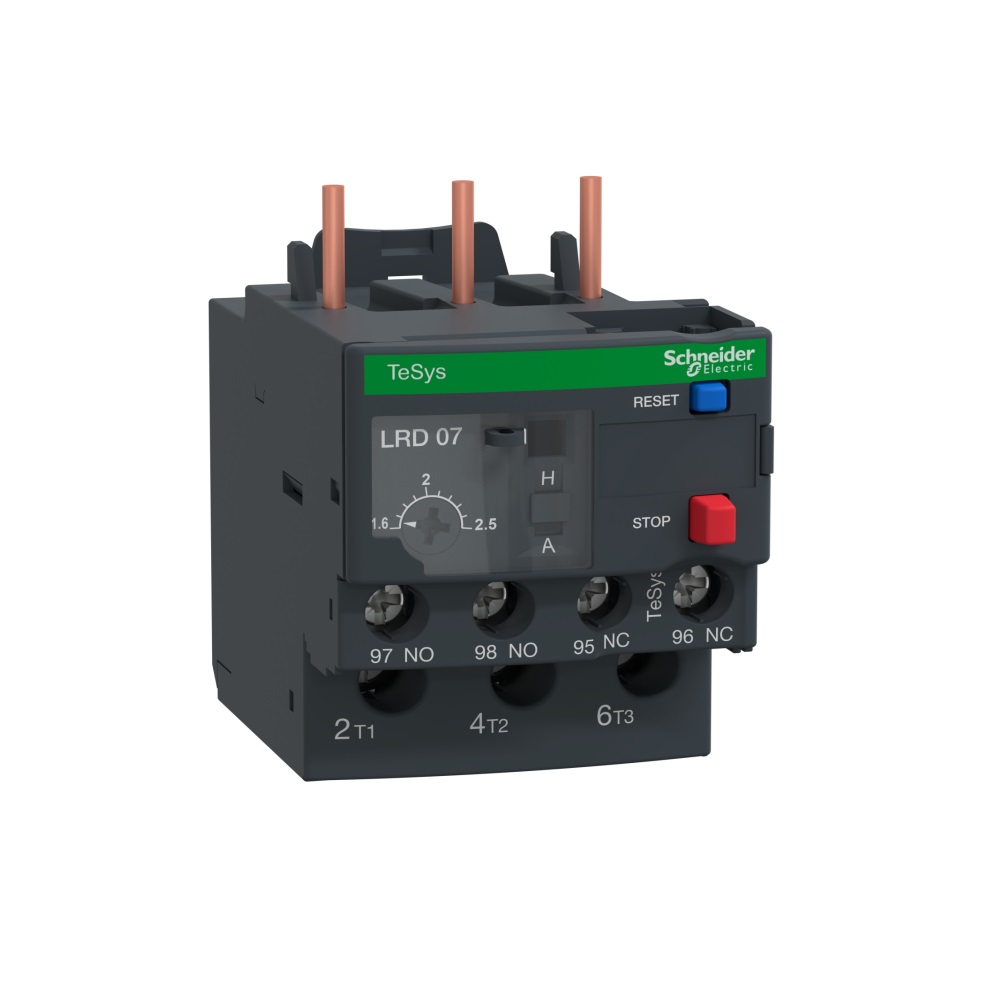

TeSys LRD
thermal overload relay, 2.5A/690V, thermal setting range 1.6-2.5A, tripping
class 10A, for protection of 3-phase motors 0.75kW@400V. Differential device
with phase failure and load unbalance detection. It provides a thermal
adjustment dial, a manual-automatic reset selector, a test selector for
simulation of a trip, reset and stop buttons, a flag indicator, and 2 auxiliary
contacts (1NO and 1NC) for fault signaling. Settings are protected by a
transparent cover lockable by sealing. Connection by screw clamp terminals: it
connects directly to the bottom terminals of 3-pole contactors LC1D09-D38.
Mounting on DIN rail or screw fixing, separated from the contactor, with use of
a terminal block LAD7B106 (to be ordered separately). Multi standards certified
(IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).
Technical Data
Range | TeSys TeSys
Deca |
Product
or component type | Differential
thermal overload relay |
Device
short name | LRD |
Relay Application | Motor
protection |
Product
compatibility | LC1D18 LC1D38 LC1D32 LC1D25 LC1D12 LC1D09 |
Network
type | DC AC |
Thermal
protection adjustment range | 1.6…2.5
A |
[Ui]
rated insulation voltage | Power
circuit: 600 V conforming to CSA Power
circuit: 600 V conforming to UL Power
circuit: 690 V conforming to IEC 60947-4-1 |
