SKU: SCH516
Category: Relay

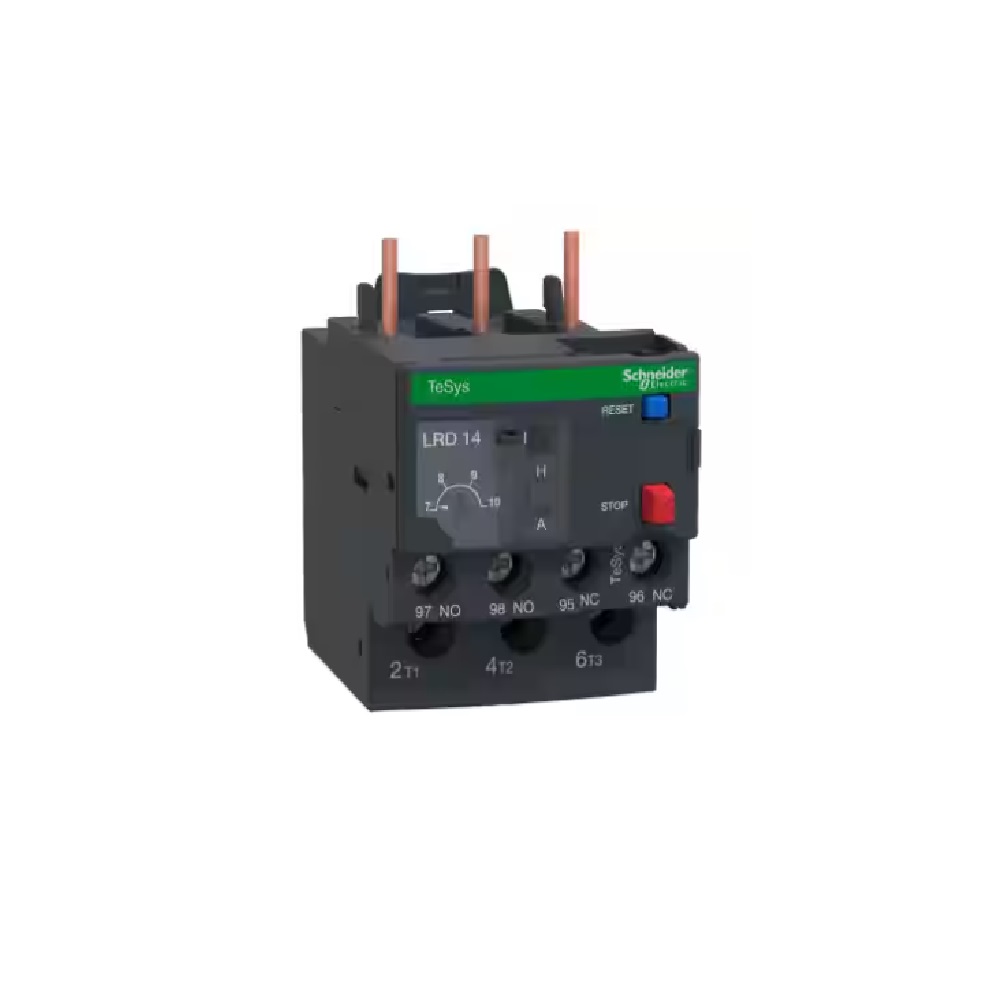

Overload Relay
Brand:
Schneider
Model:
LRD14
Description
TeSys LRD
thermal overload relay, 10A/690V, thermal setting range 7-10A, tripping class
10A, for protection of 3-phase motors 4kW@400V. Differential device with phase
failure and load unbalance detection. It provides a thermal adjustment dial, a
manual-automatic reset selector, a test selector for simulation of a trip,
reset and stop buttons, a flag indicator, and 2 auxiliary contacts (1NO and
1NC) for fault signalling.
Technical Data
|
Range |
TeSys TeSys Deca |
|
Product or
component type |
Differential
thermal overload relay |
|
Device short
name |
LRD |
|
Relay
application |
Motor protection |
|
Network type |
AC DC |
|
Thermal overload
class |
Class 10A
conforming to IEC 60947-4-1 |
|
Rated
insulation voltage |
Power circuit:
600 V conforming to CSA Power circuit:
600 V conforming to UL Power circuit:
690 V conforming to IEC 60947-4-1 |
