SKU: SCH747
Category: Relay
Relay
Brand: Schneider
Partner Number:
LRD02
Description

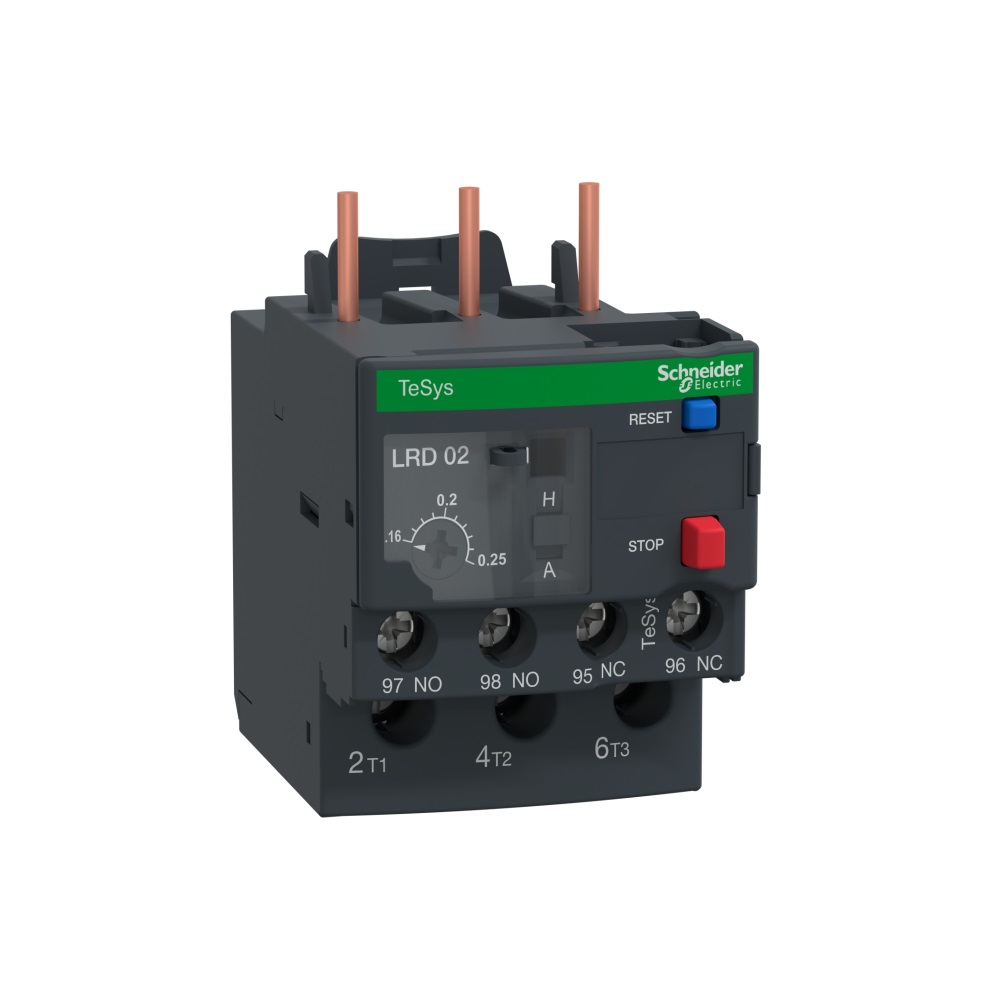

TeSys LRD thermal overload relay, 0.25A/690V, thermal setting range 0.16-0.25A,
tripping class 10A, for protection of 3-phase motors 0.06kW@400V. Differential
device with phase failure and load unbalance detection. It provides a thermal
adjustement dial, a manual-automatic reset selector, a test selector for
simulation of a tripping, reset and stop buttons, a flag indicator and 2
auxiliary contacts 1NO+1NC for fault signalling.
Technical Data
|
Range |
TeSys TeSys Deca |
|
Product or
component type |
Differential
thermal overload relay |
|
Device short
name |
LRD |
|
Relay
application |
Motor protection |
|
Network type |
DC AC |
|
Thermal overload
class |
Class 10A
conforming to IEC 60947-4-1 |
|
Rated
insulation voltage |
Power circuit:
600 V conforming to CSA Power circuit:
600 V conforming to UL Power circuit:
690 V conforming to IEC 60947-4-1 |
