SKU: SCH1137
Category: Contactor
Contactor
Brand:
Schneider
Model: Micro Motion 2700
Partner Number:
LC1D32B7
Description

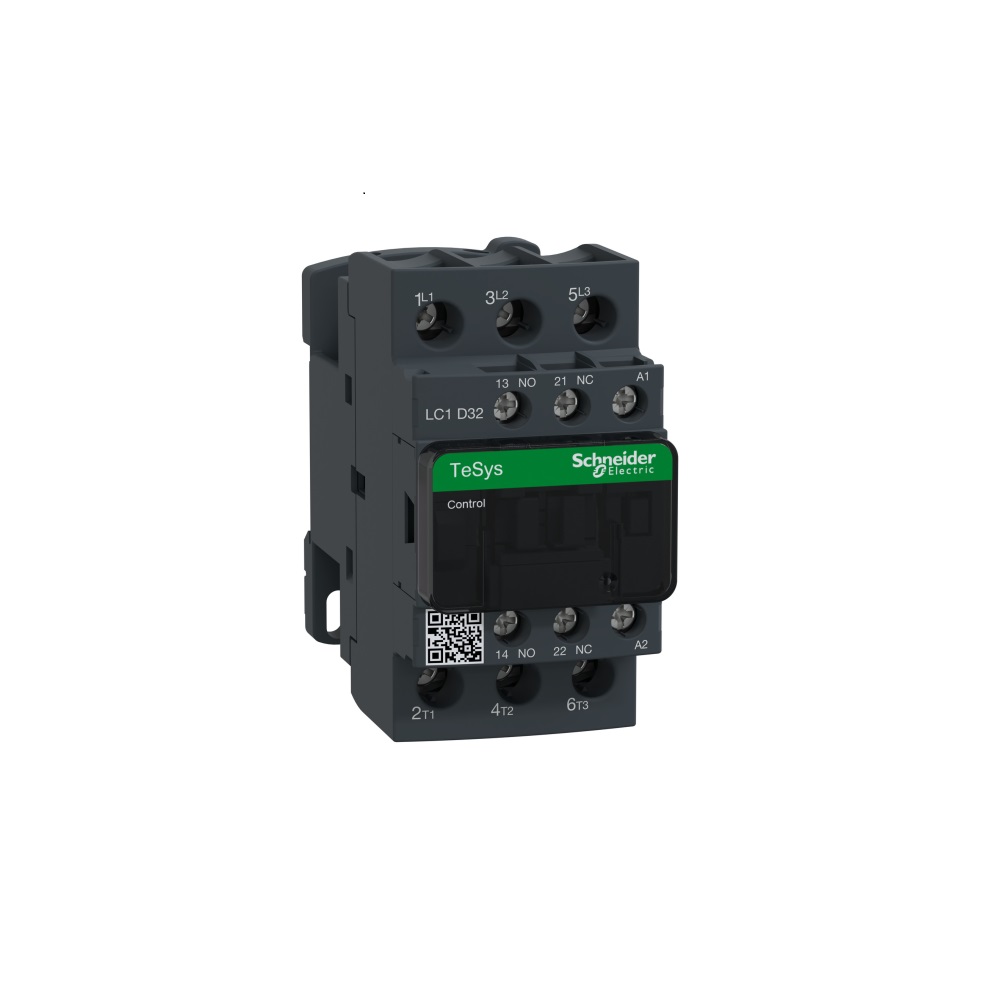

TeSys D contactor, 3 poles (3NO), for motor control applications up to 32A/690V AC-3/3e (15kW@400V). It provides a 24V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), and connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45 mm width), DIN-rail mounting or screw fixing. Multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Technical Data
|
Range of product |
TeSys Deca |
|
product or
component type |
Contactor |
|
contactor
application |
Resistive load Motor control |
|
Poles
description |
3P |
|
Rated
operational voltage |
Power circuit:
<= 690 V AC 25...400 Hz Power circuit:
<= 300 V DC |
|
Rated
operational current |
32 A (at <60
°C) at <= 440 V AC AC-3 for power circuit 50 A (at <60
°C) at <= 440 V AC AC-1 for power circuit 32 A (at <60
°C) at <= 440 V AC AC-3e for power circuit |
|
Control
circuit voltage |
24 V AC 50/60 Hz |
