SKU: SCH854
Category: Contactor
Circuit Breaker
Brand: Schneider
Model: LC1

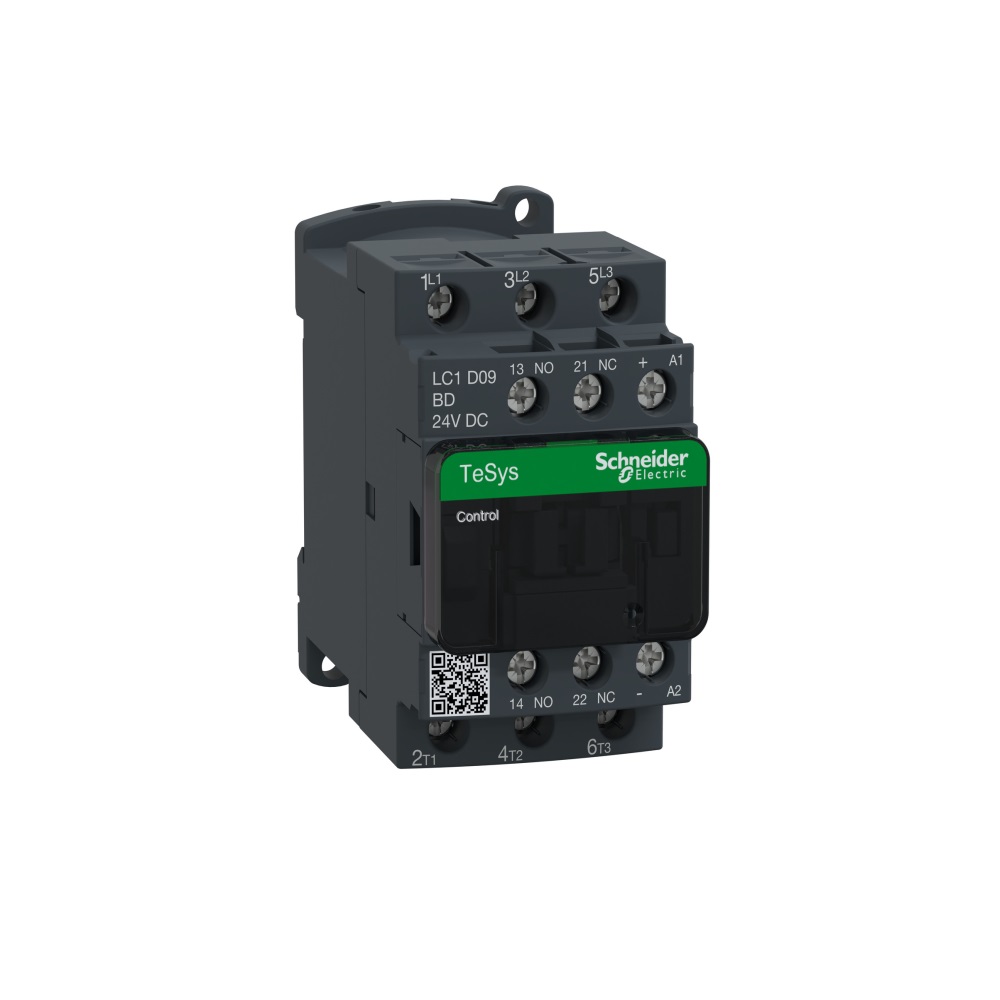

Part Number: LC1D09BD
Description
TeSys D contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3/3e (4kW@400V). It provides a 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh)
Technical
Data
|
Range
of Product |
TeSys Deca |
|
Product
or component type |
Contactor |
|
Device
short name |
LC1D |
|
Contactor
Application |
Motor control |
|
Utilisation
Category |
AC-4 |
|
Poles
description |
3P |
|
Rated operational voltage |
Power circuit: <= 690 V
AC 25...400 Hz |
|
Rated operational current |
9 A (at <60 °C) at
<= 440 V AC AC-3 for power circuit |
