SKU: SCH074
Category: Contactor
Contactor
Brand: Schneider
Model: LC1
Part Number: LC1D32M7
Description

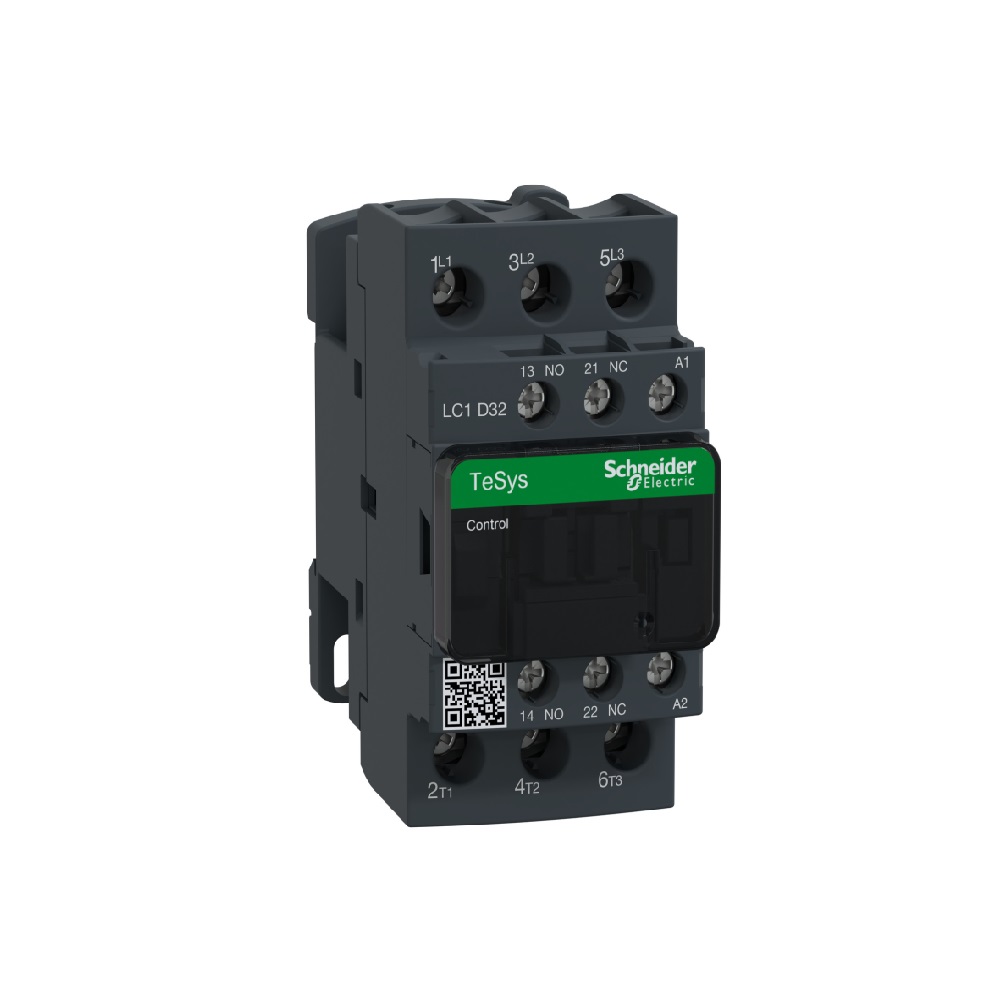

TeSys D contactor, 3 poles (3NO), for motor control applications up to 32A/690V
AC-3/3e (15kW@400V). It provides a 220V 50/60Hz AC coil, 1NO+1NC built-in
auxiliary contacts (NC mirror certified), connection by screw clamp terminals.
For operating rates until 3600 cycles/hour and environments until 60°C, it
procures high reliability and durability. Compact (45mm width), DIN-rail
mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC,
Marine), Green Premium compliant (RoHS/REACh)
Technical
Data
|
Range
of Product |
TeSys Deca |
|
Product
or component type |
Contactor |
|
Device
short name |
LC1D |
|
Contactor
application |
Resistive load |
|
Utilisation
Category |
AC-4 |
|
Poles
Description |
3P |
|
Rated operational voltage |
Power circuit: <= 690 V
AC 25...400 Hz |
|
Rated operational current |
32 A (at <60 °C) at
<= 440 V AC AC-3 for power circuit |
