SKU: SCH208
Category: Modules

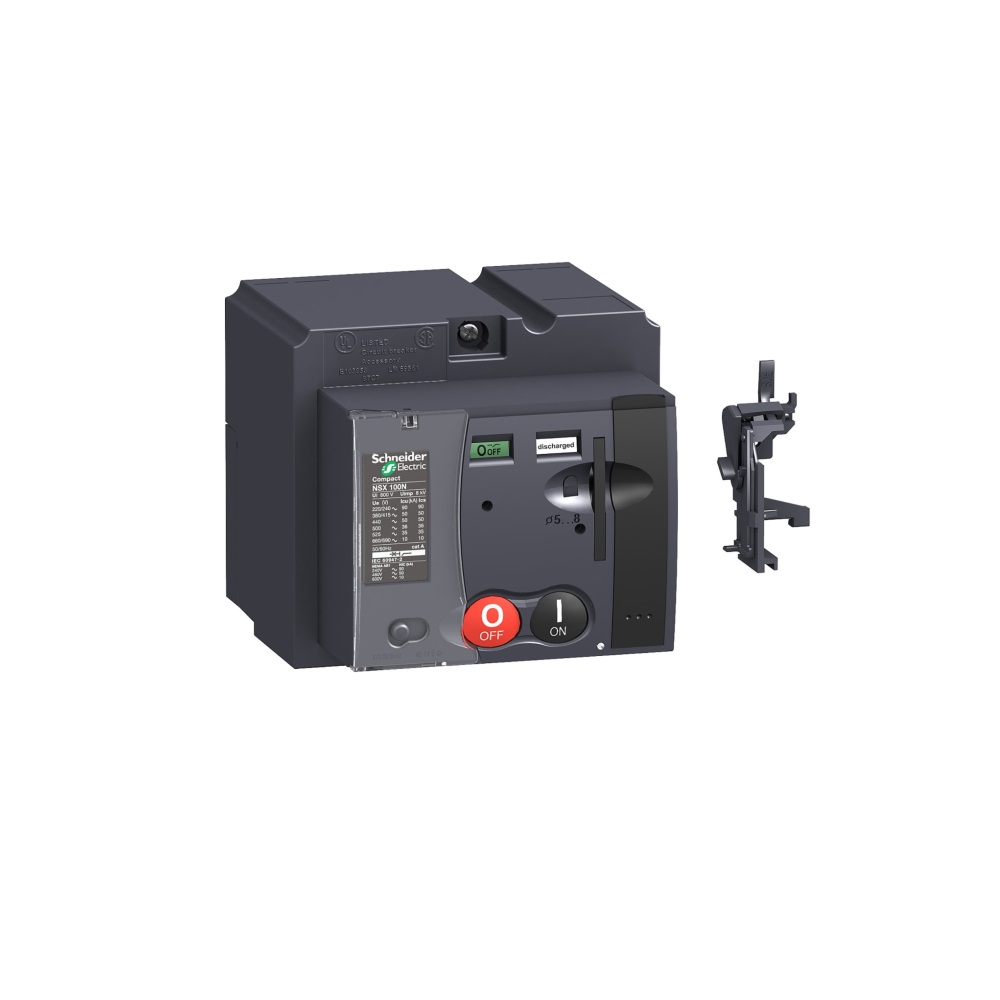

Motor Mechanism
Brand: Schneider
Model: NSX250
Part Number: LV431541
Description
This is a standard motor mechanism for Compact NSX 250 and PowerPact Multistandard J-frame devices that allows automatic device spring-charging. It helps the circuit breaker to feature high mechanical endurance as well as easy and sure opening or closing operations. It provides double insulation of the front face, and all indications remain visible and accessible. The control voltage of this motor mechanism module is 220VAC to 240VAC 50/60Hz or 208VAC to 277VAC 60Hz. The consumption is less than 500 VA. Padlocking of the device remains possible. The motor mechanism is supplied with an SDE adapter.
Technical Data
|
MT250 |
|
|
Product or Component Type |
Motor mechanism |
|
Device Application |
Automatic spring charging |
|
Range Compatibility |
ComPacT new generation NSX250 |
|
Control Type |
Standard |
|
Control Circuit Voltage |
208...277 V AC 60 Hz |
|
Circuit Breaker Mounting Mode |
Fixed |
|
Circuit Breaker Frame Rated
Current |
250 A |
