SKU: SCH794
Category: Electrical Accessories
Contact Block
Brand: Schneider
Partner Number: ZBE101
Description

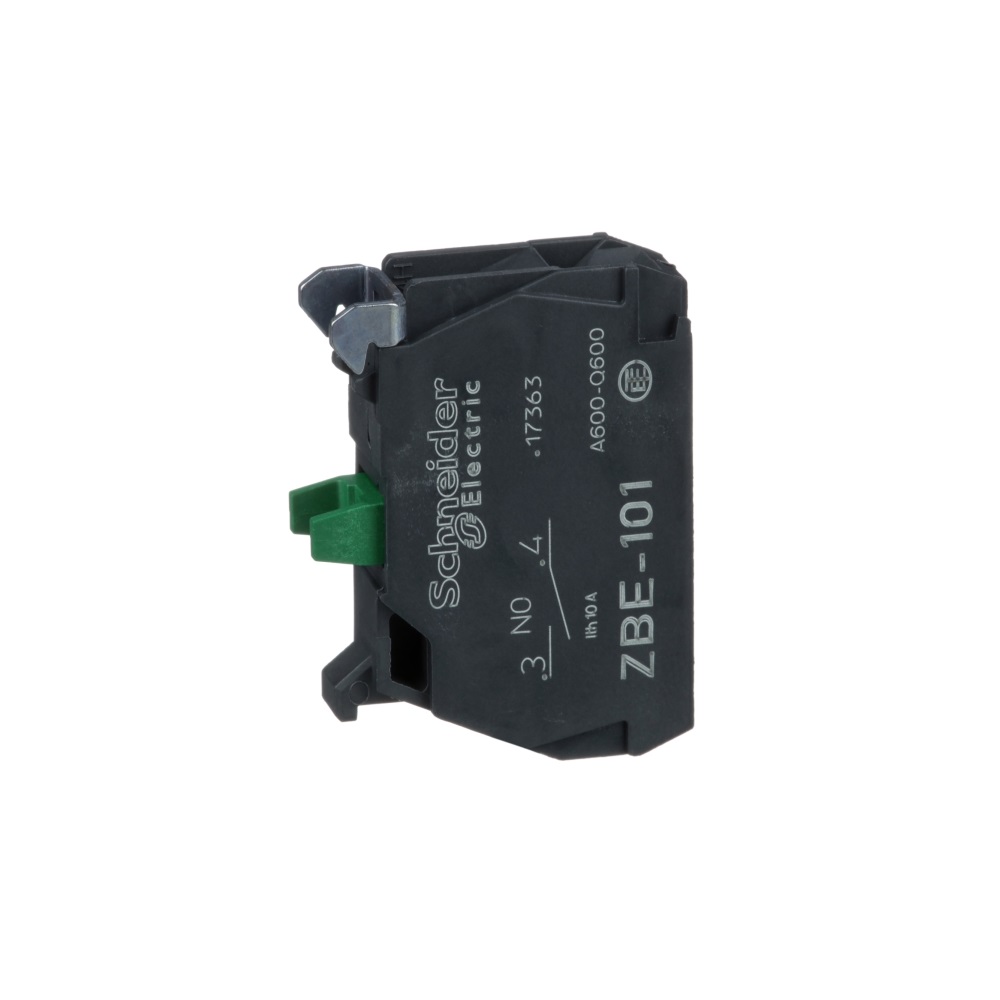

This Harmony ZB, single contact block uses screw clamp terminals. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XB4 or XB5 complete push-button units and selector switches via a clip assembly and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.
Technical
Data
|
Range of product |
Harmony XB5 Harmony XB4 |
|
product or
component type |
Contact block |
|
Device short
name |
ZBE |
|
Contact
operation |
Slow-break |
|
Contact block
type |
Single |
|
Contacts usage |
Standard
contacts |
|
Connections -
terminals |
Screw clamp
terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp
terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1 |
