SKU: SCH182
Category: Push Button
Push Button
Brand: Schneider
Model: XB5
Part Number: XB5AA51
Description
This

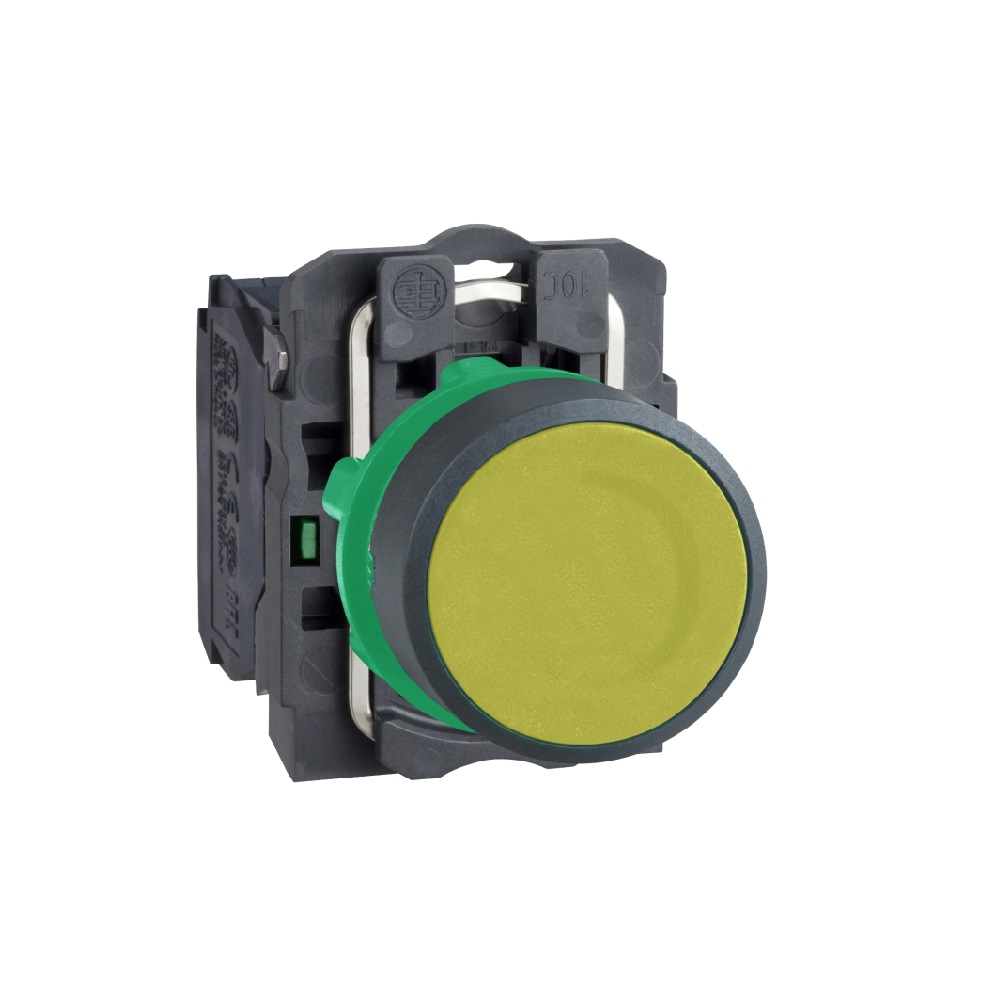

Harmony XB5 modular yellow push button operates with a spring return/iimpulse
mechanism and uses screw clamp terminals. This push button provides simple and
robust control to machines and processes. It is easily installed into standard
22mm-diameter cut-outs and connected with simple screw-clamp connections. Its
schematic is clearly distinguishable visually at a distance thanks to clear
colors and markings, minimizing errors during initial wiring and later
maintenance operations. It is impact-resistant, dust-resistant,
water-resistant, and vibration-resistant thanks to its IP66, IP67, IP69, and
IP69K, making it ideal for operation in harsh environments. Its plastic bezel
makes it ideal for applications requiring good resistance to chemical agents
and/or double electrical insulation.
Technical Data
|
Range |
Harmony
XB5 |
|
Product
or component type |
Push-button |
|
Device
short name |
XB5 |
|
Shape
of signaling unit head |
Round |
|
Type
of operator |
Spring
return |
|
Operator
profile |
Yellow
flush, unmarked |
|
Contacts
type and composition |
1
NO |
|
Connections
- terminals |
Screw
clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw
clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC
60947-1 |
