SKU: SCH184
Category: Push Button
Push Button
Brand: Schneider
Model: XB5
Part Number: XB5AA31
Description
This

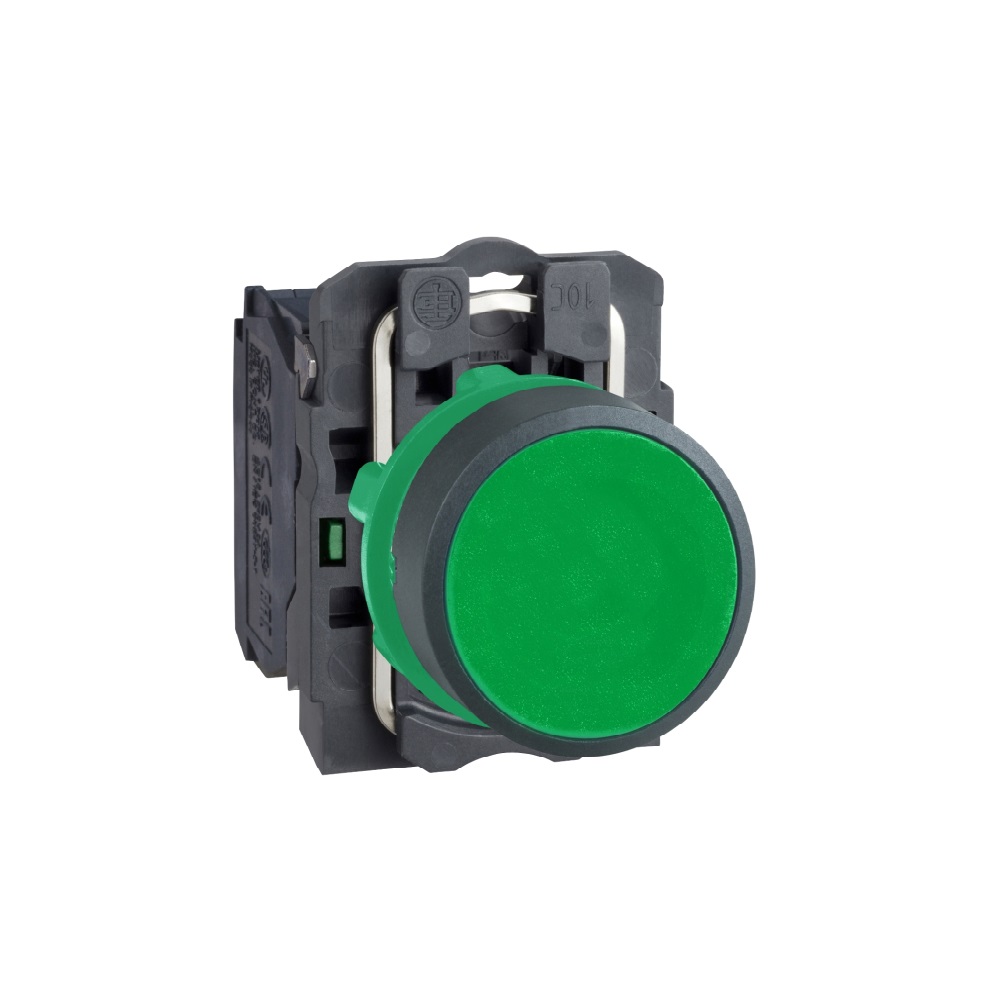

Harmony XB5 modular green push button operates with a spring return/iimpulse
mechanism and uses screw clamp terminals. This push button provides simple and
robust control to machines and processes. It is easily installed into standard
22mm-diameter cut-outs and connected with simple screw-clamp connections. Its
schematic is clearly distinguishable visually at a distance thanks to clear
colors and markings, minimizing errors during initial wiring and later
maintenance operations. It is impact-resistant, dust-resistant,
water-resistant, and vibration-resistant thanks to its IP66, making it ideal
for operation in harsh environments. Its plastic bezel makes it ideal for
applications requiring good resistance to chemical agents and/or double
electrical insulation.
Technical Data
|
Range |
Harmony
XB5 |
|
Product
or component type |
Push-button |
|
Device
short name |
XB5 |
|
Head
type |
Standard |
|
Fixing
collar material |
Plastic |
|
Contacts
type and composition |
1
NO |
|
Contact
operation |
Slow-break |
|
Connections
- terminals |
Screw
clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw
clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC
60947-1 |
