SKU: SCH229
Category: Breakers
Terminal Connections
Brand: Schneider
Partner Number:
LV429407
Description

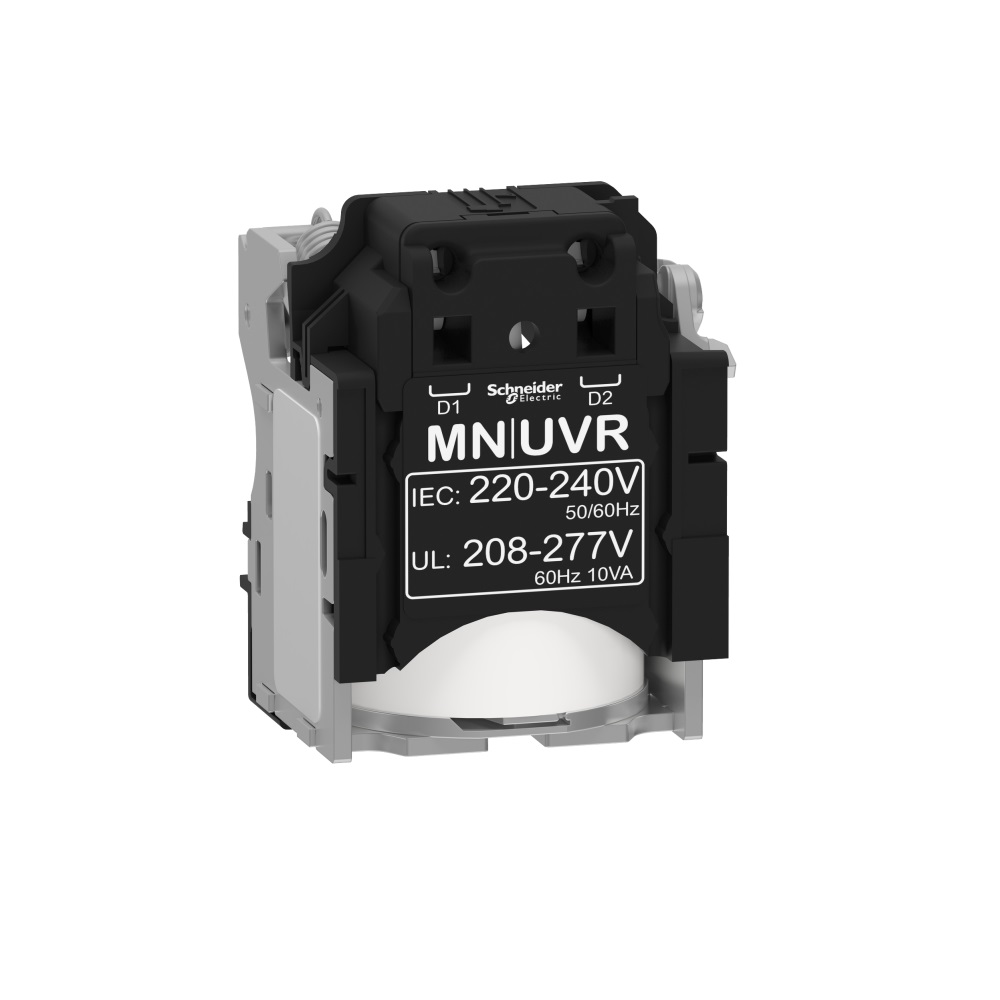

This is a MN undervoltage release for Compact NSX, PowerPact Multistandard and
EasyPact CVS circuit breakers. Its rated voltage is 220 to 240 VAC 50/60 Hz, or
208 to 277 VAC 60 Hz. It is an auxiliary used for emergency off or remote
opening applications. This auxiliary opens the circuit breaker when the control
voltage drops to a value below 35% of its rated voltage Un. It complies with
IEC 60947-2 standard
Technical Data
|
Range |
ComPacT |
|
Product or
component type |
Voltage release |
|
Device application |
Control |
|
Control
circuit voltage |
220...240 V AC
50/60 Hz 208...277 V AC
60 Hz |
|
Range
compatibility |
ComPacT new
generation ComPacT NSX new generation ComPacT new
generation ComPacT NSX DC new generation ComPact ComPact
NSX ComPact ComPact
NSX DC EasyPact
EasyPact CVS PowerPact
PowerPact Multistandard |
|
Response time |
50 ms |
|
Auxiliary
connection terminal |
Spring 0.5…1.5
mm² (AWG 20...AWG 16) |
