For pricing and availability, please send an email to info@industrytechstore.com
SKU: SCH846
Category: Push Button
Push
Button
Brand: Schneider
Part Number: XB4BW34B5
Description

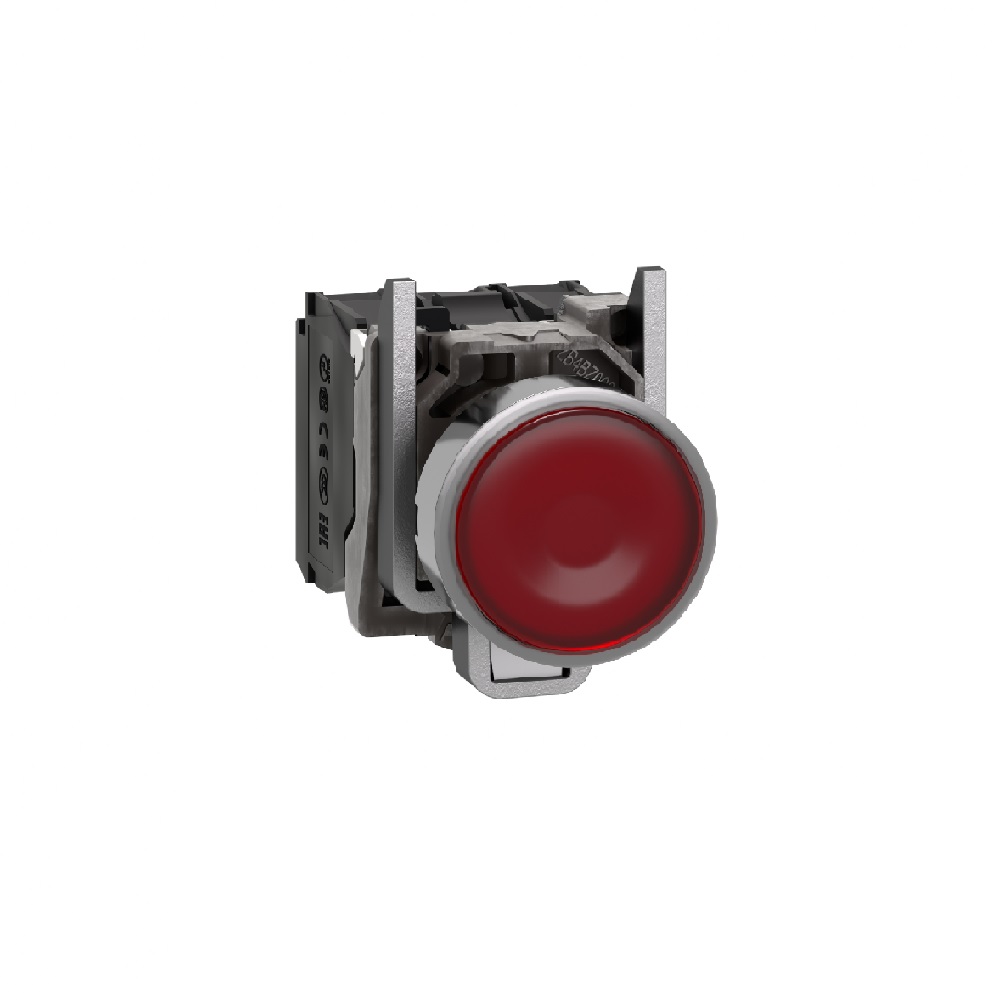

This Harmony XB4 illuminated modular red push button operates with a spring return mechanism, is supplied with 24V AC/DC, and uses a universal LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm-diameter panel cut-outs and connected to control circuits with classic screw-clamp connections.
Technical Details
|
Range of product |
Harmony XB4 |
|
Product or component type |
Illuminated push-button |
|
Device short name |
XB4 |
|
Mounting diameter |
22 mm |
|
Rated supply voltage |
24 V AC/DC at 50/60 Hz |
|
Contacts type and composition |
1 NO + 1 NC |
|
Ambient air temperature for operation |
-40…70 °C |
