SKU: SCH1039
Category: Electrical Accessories
Empty Enclosure
Brand: Schneider
Part
Number: XALD02
Description

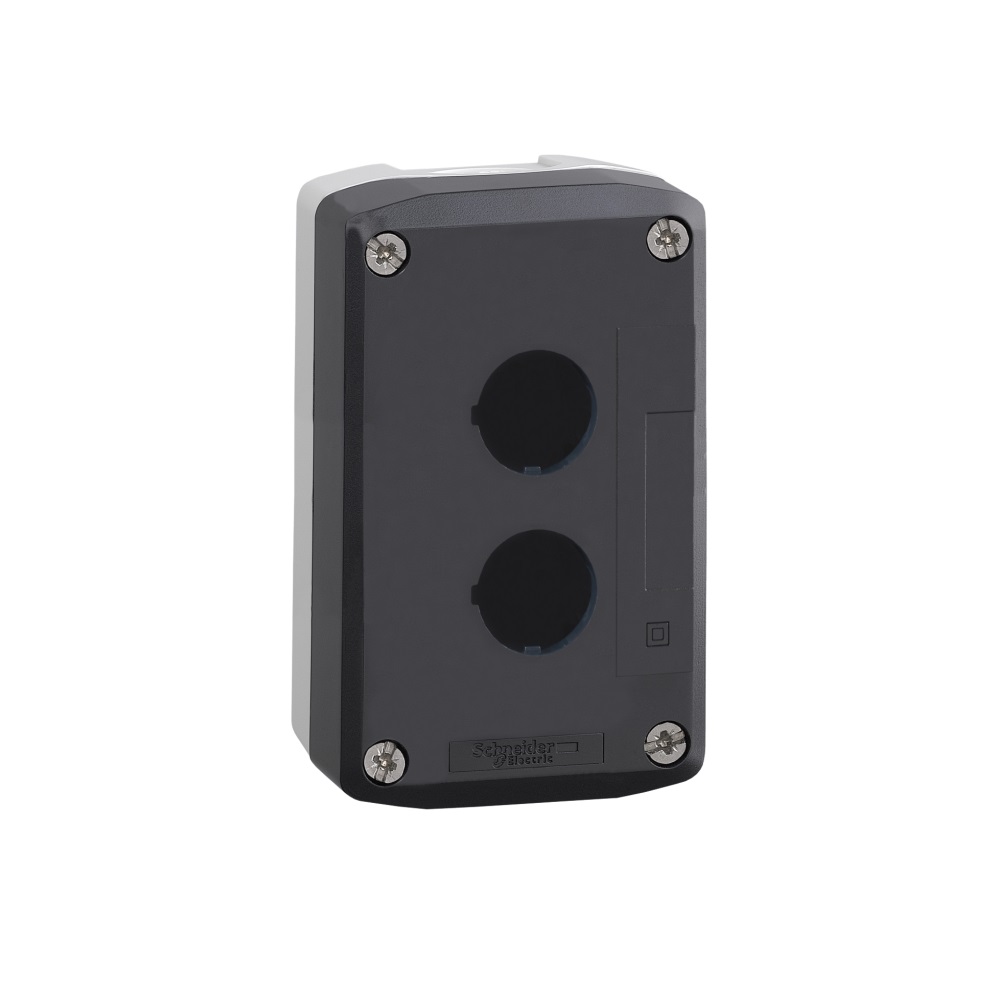

This
Harmony XALD empty control station has 2 cut-outs for 2 push buttons/ 2
functions for controlling operation in machines. This 2-cut-out dark gray empty
control station enables machine builders to customize their machines by easily
adding any control and signaling functionality units on the enclosure according
to the operation required. It is designed for simple and mass production
machines, textiles, packaging, handling small lifting systems, control of
garage doors, rolling shutters, and smoke extraction vents.
Technical
Details
|
Range
of product |
Harmony
XALD |
|
Number
of cut-out |
2
cut-outs |
|
Cable Entry |
2
knock-outs for cable entry, clamping capacity: 14 mm 2
knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12 mm |
|
IP Degree of Protection |
IP66
conforming to IEC 60529 IP67 IP69 IP69K |
|
Mounting
of block |
Front
mounting Rear
mounting |
|
Ambient
air temperature for Operation |
-40…70
°C |
|
Standards |
IEC
60947-5-4 UL
508 IEC
60947-5-5 IEC
60947-5-1 JIS
C8201-5-1 IEC
60947-1 CSA
C22.2 No 14 JIS
C8201-1 |
