SKU: SCH1073
Category: Breakers

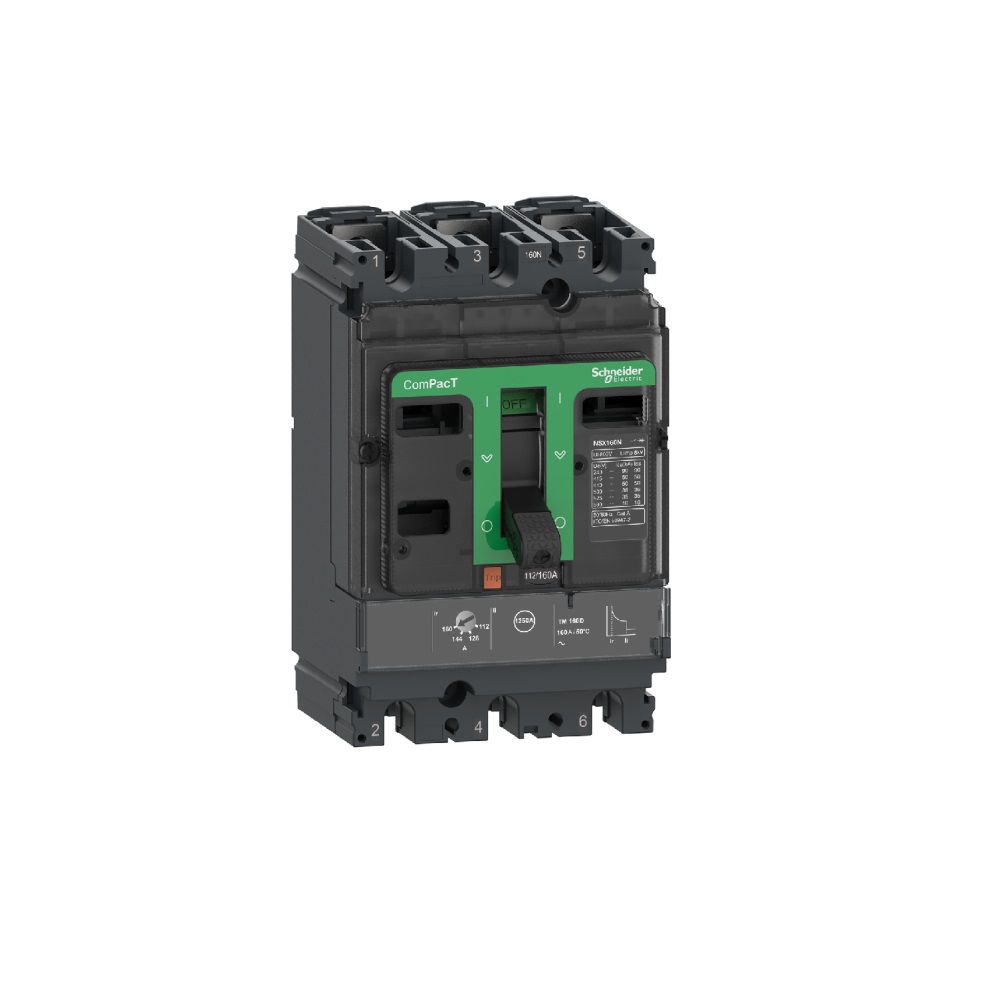

Circuit Breaker
Brand:
Schneider
Model: NSX250
Partner Number: C25N3TM250C
Description
This
ComPacT NSX250N is a complete 3P 3D fixed circuit breaker designed to optimize
space and breaking capacity. It is an optimal choice for all standard and
specific applications. The breaking capacity (ICU) is 50kA rms at 415VAC
50/60Hz. The operational voltage is 690 VAC, 50/60 Hz. This product embeds a
250A rating thermal-magnetic trip unit (TMD) under 50℃ ambient air temperature
for operation. The TMD trip unit provides an adjustable thermal overload
protection and a fixed magnetic protection.
Technical Data
|
Range |
ComPacT new
generation |
|
Device short
name |
NSX250N |
|
product or
component type |
Circuit breaker |
|
Poles
description |
3P |
|
[In] rated
current |
250 A at 50 °C |
|
[Ue] rated
operational voltage |
690 V AC 50/60
Hz |
