SKU: SCH1140
Category: Breakers
Circuit Breaker
Brand:
Schneider
Model: NSX160
Partner Number: C16N3TM160C
Description
This

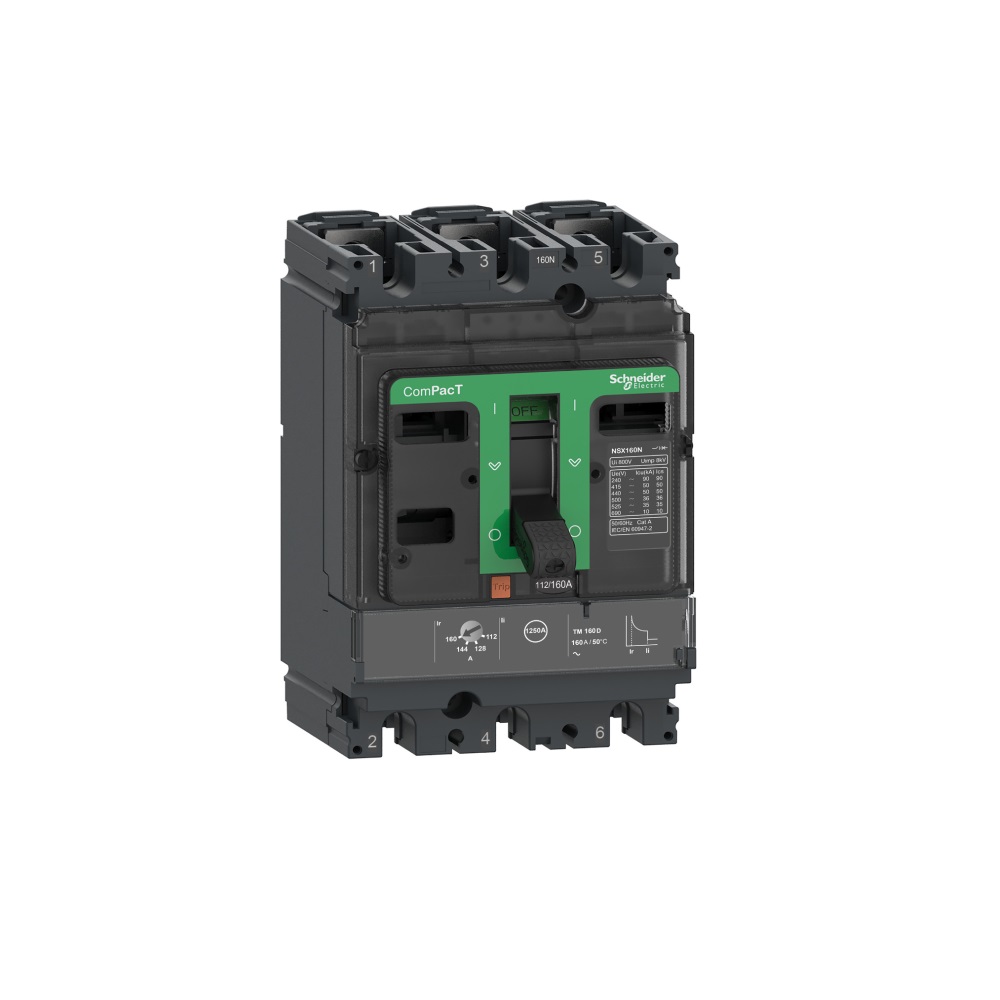

ComPacT NSX160N is a complete 3P 3D fixed circuit breaker designed to optimize
space and breaking capacity. It is an optimal choice for all standard and
specific applications. The breaking capacity (ICU) is 50kA rms at 415VAC
50/60Hz. The operational voltage is 690 VAC, 50/60 Hz. This product embeds a
160A rating thermal-magnetic trip unit (TMD) under 50℃ ambient air temperature
for operation. The TMD trip unit provides an adjustable thermal overload
protection and a fixed magnetic protection.
Technical Data
|
Range |
ComPacT new
generation |
|
product name |
ComPacT NSX new
generation |
|
Device short
name |
NSX160N |
|
Poles
description |
3P |
|
Protected poles
description |
3D |
|
Network type |
AC |
|
Rated
ultimate short-circuit breaking capacity |
90 kA Icu at
220/240 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at
380/415 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 440
V AC 50/60 Hz conforming to IEC 60947-2 36 kA Icu at 500
V AC 50/60 Hz conforming to IEC 60947-2 35 kA Icu at 525
V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at
660/690 V AC 50/60 Hz conforming to IEC 60947-2 |
