SKU: A9F44306
Category: MCB
Brand: Schneider
Model: Acti9
Part Number: A9F44306
Description

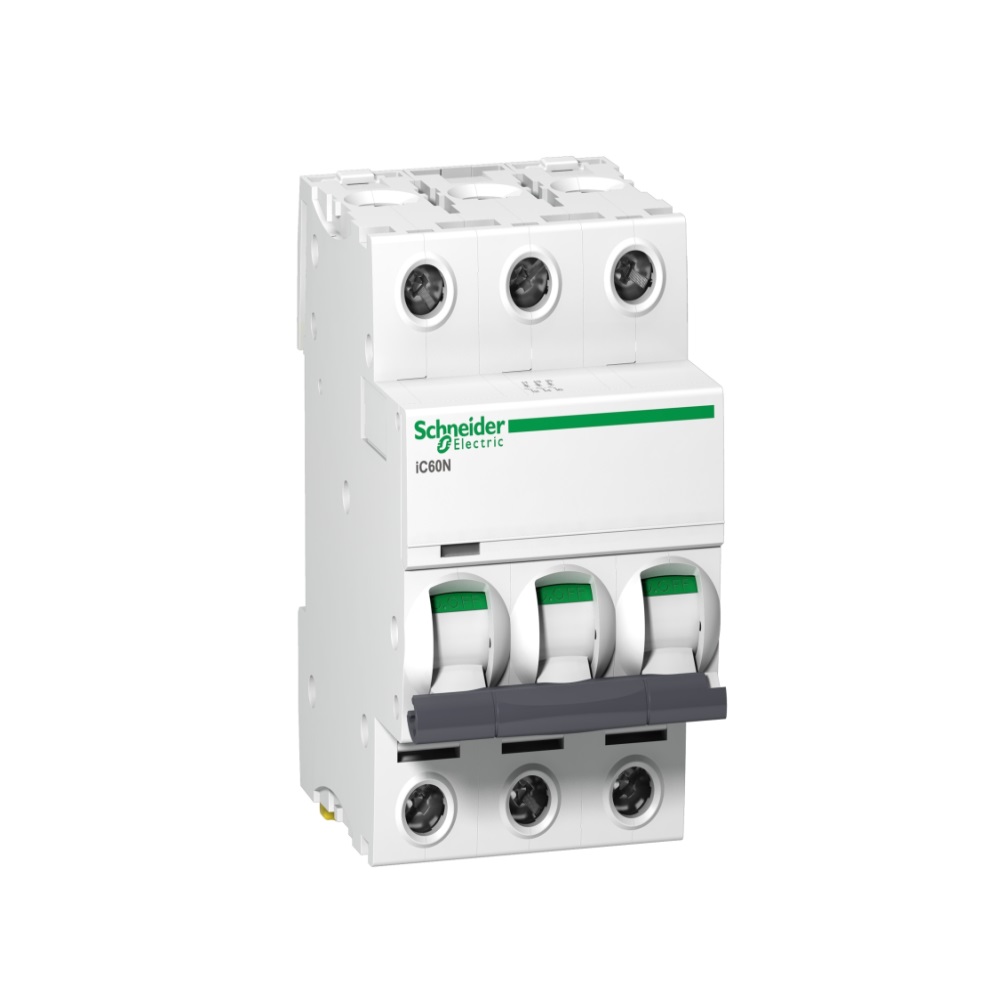

This Acti9 iC60N is a low-voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles, 6A rated current, and a C tripping curve. The rated short circuit breaking capacity goes up to 20kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 6000A at 415VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuits against short circuits and overload current. Its unique Visit rip indicator reduces intervention time by showing the faulty circuit. Its Vis Safe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast-closing mechanism, independent of manual operation, improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles.
Technical Data
|
Range |
Acti9 |
|
Product or Component typee |
Miniature circuit-breaker |
|
Device short name |
IC60N |
|
Poles Description |
3P |
|
Breaking Capacity |
6000 A Icn at 415 V AC 50/60
Hz conforming to EN/IEC 60898-1 36 kA Icu at 12...133 V AC 50/60 Hz
conforming to EN/IEC 60947-2 20 kA Icu at 220...240 V AC 50/60 Hz
conforming to EN/IEC 60947-2 10 kA Icu at 380...415 V AC 50/60 Hz
conforming to EN/IEC 60947-2 6 kA Icu at 440 V AC 50/60 Hz conforming
to EN/IEC 60947-2 10
kA Icu at <= 180 V DC conforming to EN/IEC 60947-2 |
|
Ambient air temperature for
operation |
-35…70 °C |
|
Ambient air temperature for
storage |
-40…85 °C |
|
Relative Humidity |
95 % at 55 °C |
