SKU: SCH008
Category: MCB
Miniature Circuit Breaker
Brand:
Schneider
Model: Acti9
Part Number: A9F44225
Description

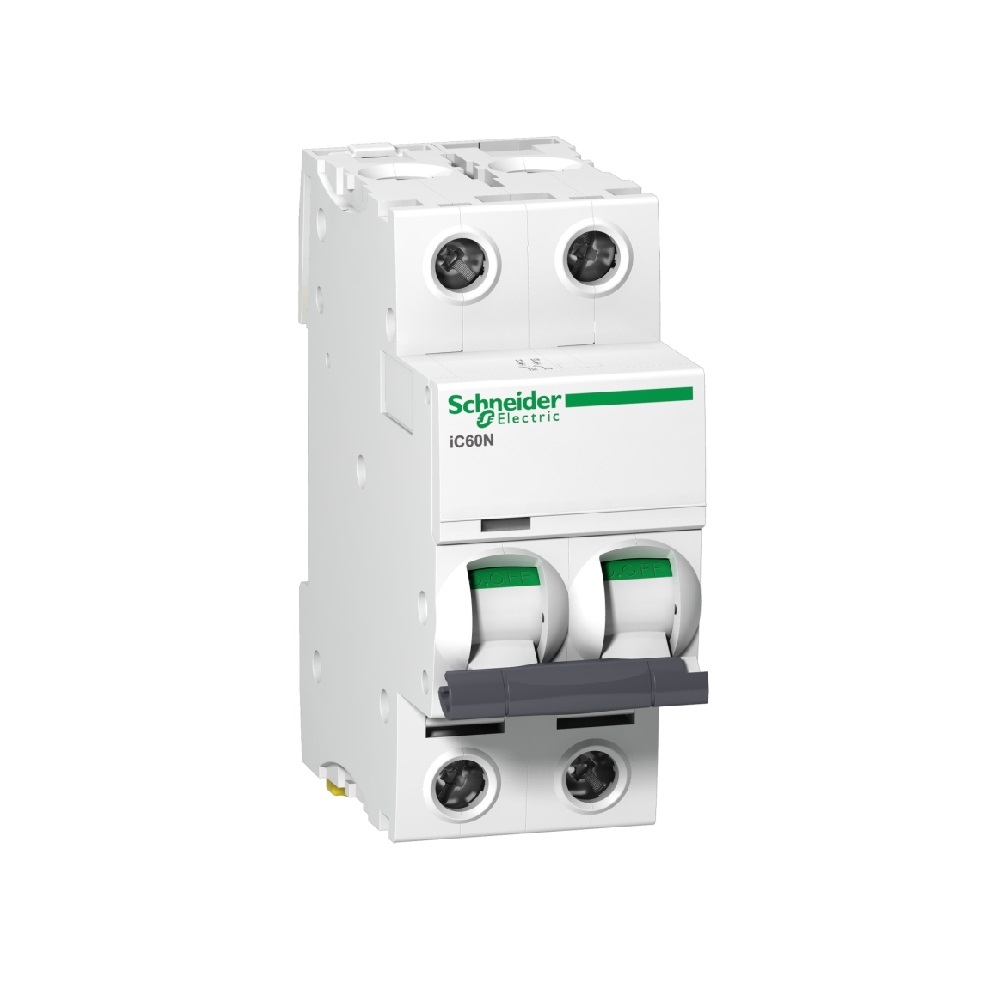

This Acti9 iC60N is a low voltage
miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected
poles, 25A rated current and C tripping curve. The rated short circuit breaking
capacity goes up to 20kA at 220VAC to 240VAC conforming to EN/IEC 60947-2
standard and 6000A at 415VAC conforming to EN/IEC 60898-1 standard. It complies
with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC
60947-2.
Technical
Data
|
Network
frequency |
50/60 Hz |
|
Rated operational voltage |
400 V AC 50/60 Hz |
|
Magnetic
tripping limit |
8 x in +/- 20 % |
|
Limitation
class |
3 conforming to EN/IEC
60947-2 |
|
Rated insulation voltage |
500 V AC 50/60 Hz |
|
Rated impulse withstand voltage |
6 kV conforming to EN/IEC
60947-2 |
|
Contact
position indicator |
Yes |
|
Control
type |
Toggle |
