SKU: A9R41440
Category: Breakers

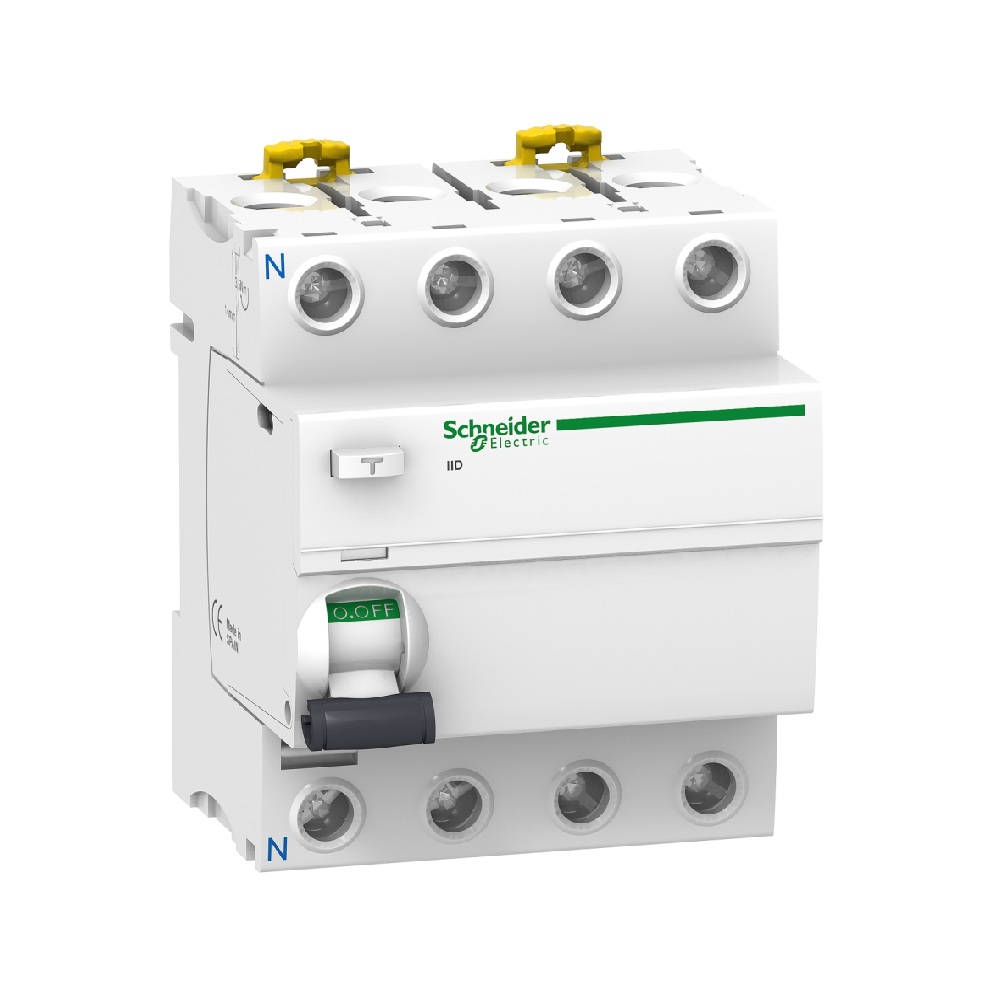

Circuit Breaker
Brand:
Schneider
Part Number: A9R41440
Description
This Acti9 iID is a modular and reliable residual current circuit breaker
(RCCB). It is a 4P circuit breaker with an In rated current of 40A, an AC-type
protection class, and a 30mA earth leakage sensitivity. This product protects
against electrical shock by direct or indirect contact and fire hazards. It
performs the function of disconnection of electrical circuits in case of an
earth fault. Its unique Visitrip indicator reduces intervention time by showing
the faulty device with a mechanical indicator on the front face. This product
also has a VisiSafe window with a green strip on the toggle indicating full
opening of the poles, allowing downstream maintenance.
Technical Data
|
Range |
Acti9 |
|
Product
name |
Acti9 iID |
|
Product
or component type |
Residual current circuit breaker (RCCB) |
|
Device
short name |
iID |
|
Poles
description |
4P |
|
Neutral
position |
Left |
|
[In]
rated current |
40 A |
|
Network
type |
AC |
