SKU: SCH1038
Category: Electrical Accessories
Empty Control Station
Brand:
Schneider
Model: DOP
100 Series
Part
Number: XALD03
Description
This

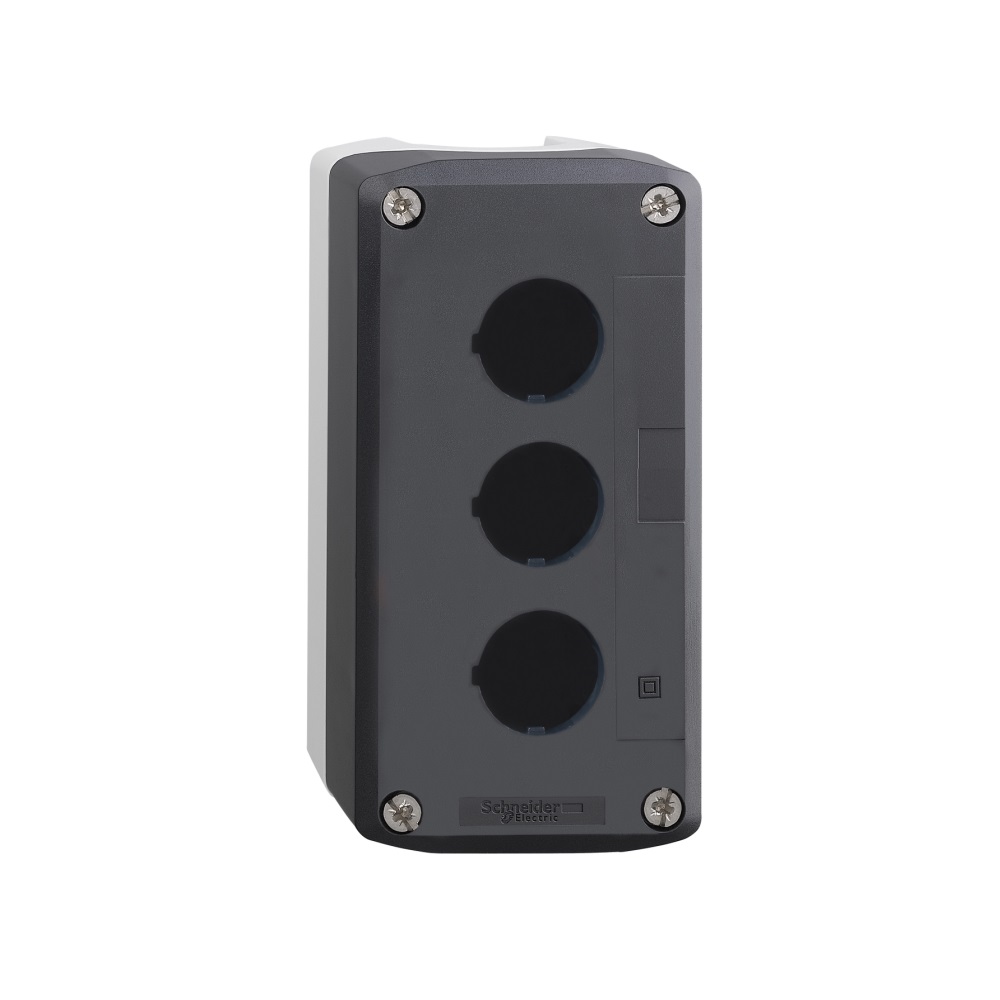

Harmony XALD empty control station has 3 cut-outs for 3 push buttons/3
functions for controlling operation in machines. This 3-cut-out dark gray empty
control station enables machine builders to customize their machines by easily
adding any control and signaling functionality units on the enclosure according
to the operation required. It is designed for simple and mass production
machines, textiles, packaging, handling small lifting systems, control of
garage doors, rolling shutters, and smoke extraction vents.
Technical
Details
|
Product
or component type |
Empty
control station |
|
Number
of cut-out |
3
cut-outs |
|
Material |
Polycarbonate |
|
IP
degree of protection |
IP66
conforming to IEC 60529 IP67 IP69 IP69K |
|
Resistance
to high pressure washer |
7000000
Pa at 55 °C, distance : 0.1 m |
|
Ambient
air temperature for storage |
-40…70
°C |
|
Ambient
air temperature for operation |
-40…70
°C |
|
standards |
IEC
60947-1 CSA
C22.2 No 14 UL
508 IEC
60947-5-5 IEC
60947-5-1 IEC
60947-5-4 JIS
C8201-5-1 JIS
C8201-1 |
