SKU: SCH007
Category: MCB
Miniature Circuit Breaker
Brand:
Schneider
Model: Acti9
Part Number: A9F44220
Description
This

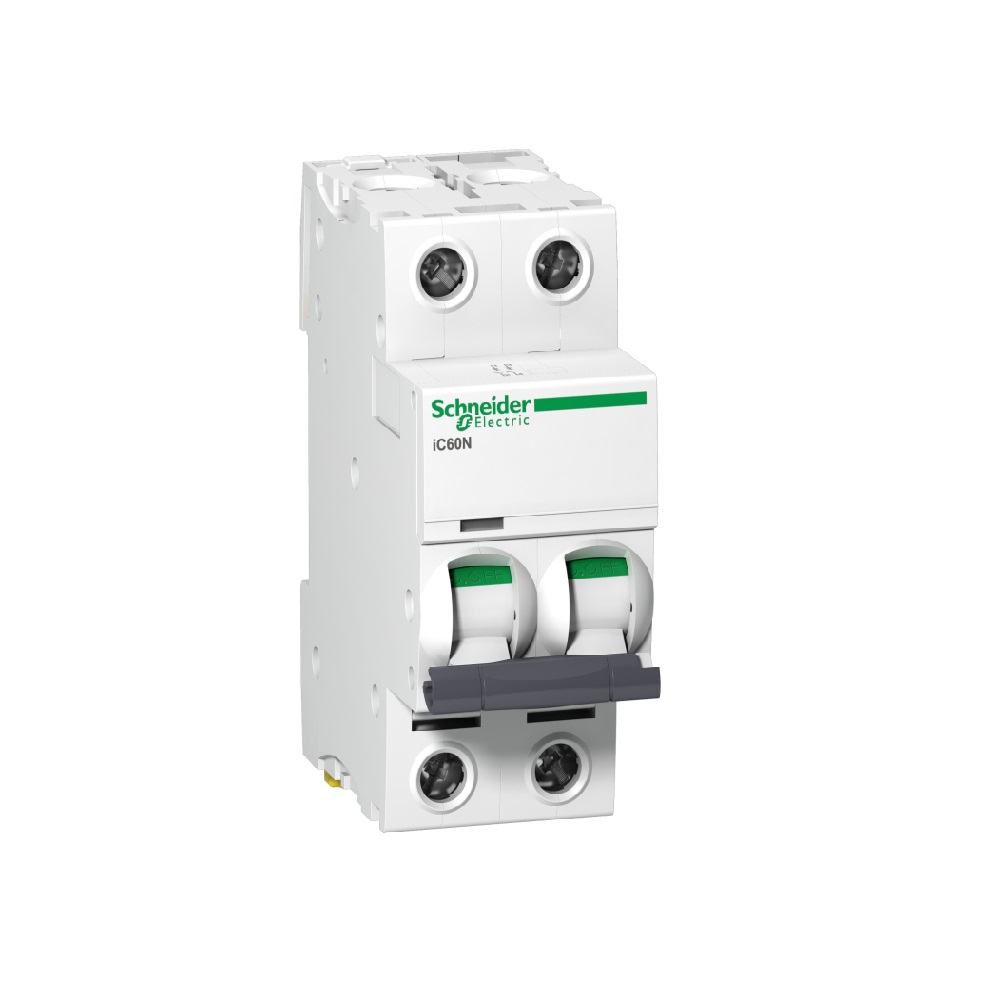

Acti9 iC60N is a low-voltage miniature circuit breaker (MCB). It is a 2P
circuit breaker with 2 protected poles, 20A rated current, and C tripping
curve. The rated short circuit breaking capacity goes up to 20kA at 220VAC to
240VAC conforming to EN/IEC 60947-2 standard and 6000A at 415VAC conforming to
EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC
60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker
protects circuits against short circuits and overload current. Its unique Visit
rip indicator reduces intervention time by showing the faulty circuit.
Technical Data
|
Network
frequency |
50/60 Hz |
|
Rated operational voltage |
400 V AC 50/60 Hz |
|
Magnetic
tripping limit |
8 x in +/- 20 % |
|
Limitation
class |
3 conforming to EN/IEC
60947-2 |
|
Rated insulation voltage |
500 V AC 50/60 Hz |
|
Rated impulse withstand voltage |
6 kV conforming to EN/IEC
60947-2 |
|
Contact
position indicator |
Yes |
|
Control
type |
Toggle |
