SKU: PBLTX-10-125-PU
Category: Level Transmitter
Level Transmitter
Brand:
Dwyer
Model: PBLTX-10-125-PU
Description

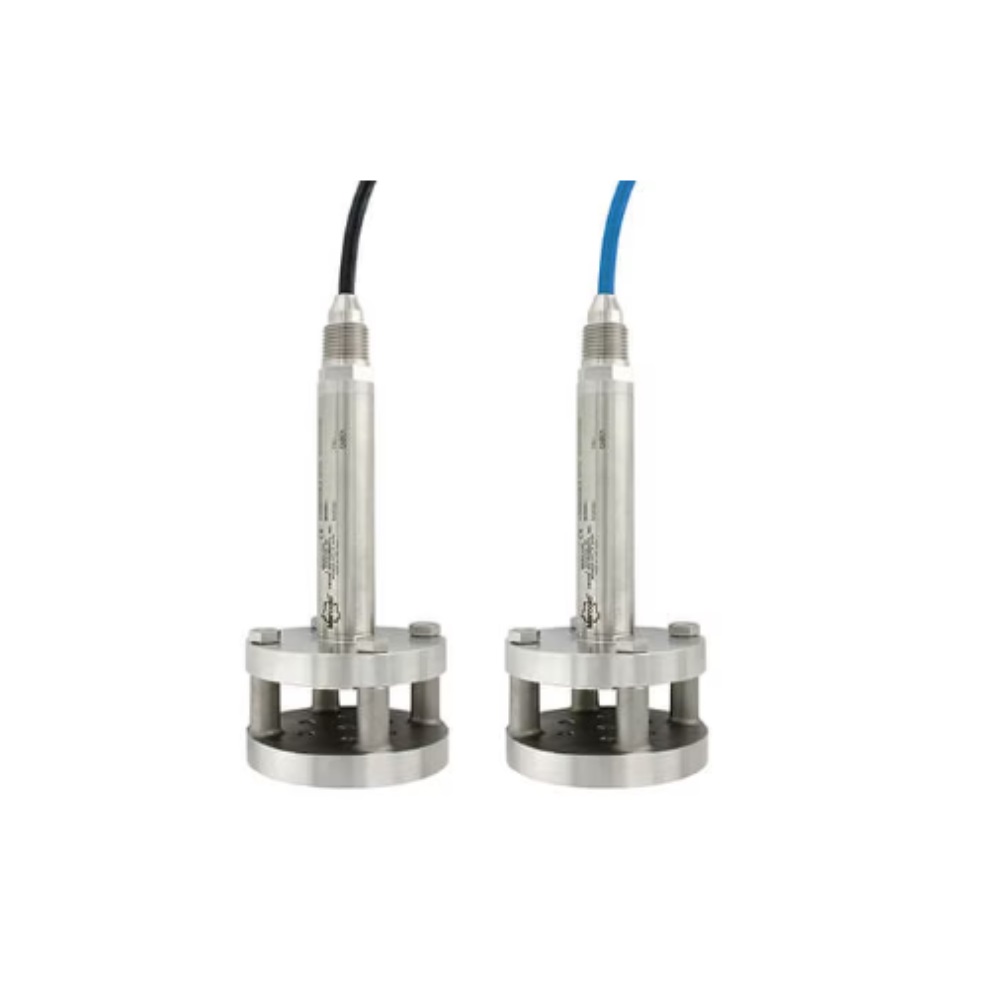

The
series PBLT2 & PBLTX Submersible Level Transmitters are manufactured for
years of trouble-free service in the harshest applications. This series
measures the height of liquid above the position in the tank referenced to
atmospheric pressure. The transmitter consists of a piezoresistive sensing
element, encased in a 316 SS housing with a cage and a large-diameter 316 SS
diaphragm seal.
Technical Data
|
Range PSI (ft
w.c.) [m w.c.] |
10 (23.09)
[7.04] |
|
Service |
Compatible
Liquids |
|
Pressure Limits |
2X FS |
|
Cable Length ft
(m) |
125 (38.1) |
|
Wetted Materials |
Body 316 SS,
316L SS |
|
Cable Type |
Polyurethane |
|
Temperature
Limit |
-4 to 149 F (-20
to 65 C) |
