SKU: 2401TR50MCBSxxx
Category: Restricted
Gauging Type
Brand: MMC
Part Number:2401TR40MCBSxxx
Description

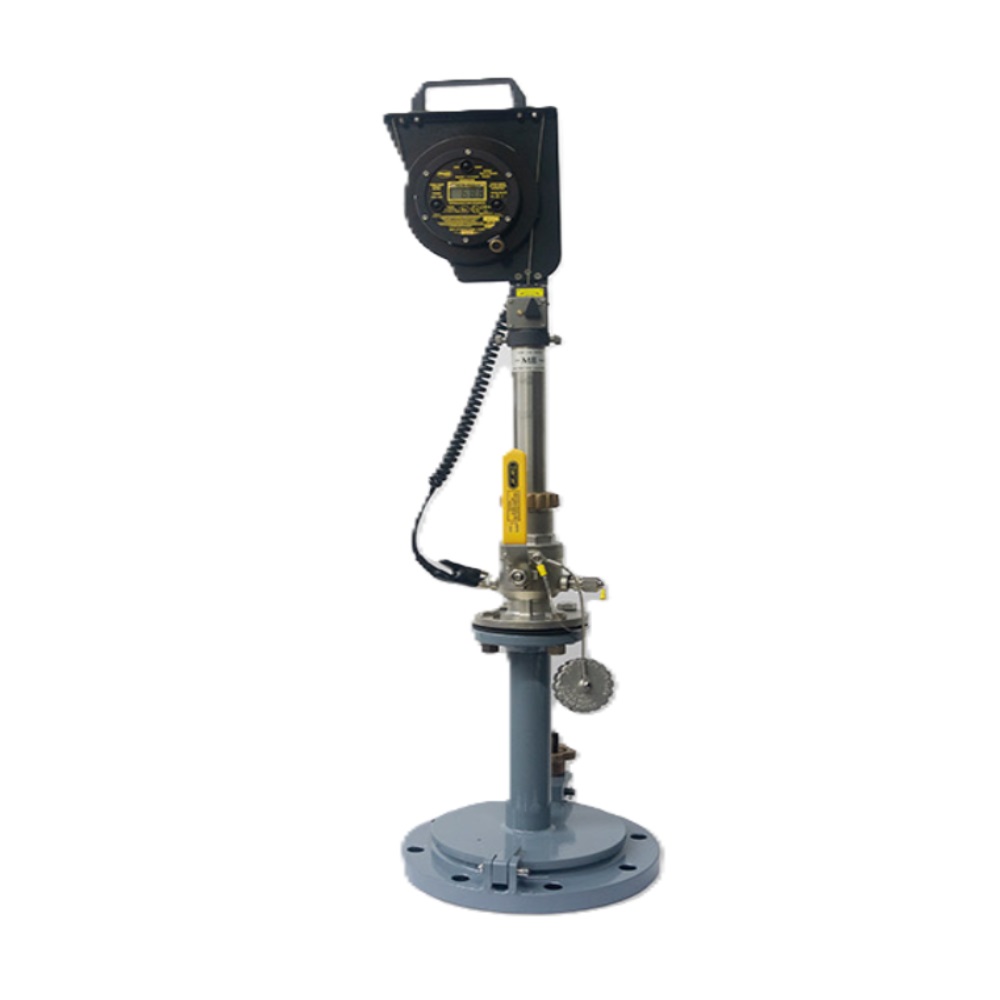

These
portable Flexi-DIP® “UTI” gauging tapes provide a convenient and accurate means
for measuring ullage, lower oil-water interface, and temperature. MMC’s UTI
gauge tapes are capable of detecting all floating and nonconductive
hydrocarbons. Each instrument is designed for ease of use. Gauging for liquid
or interface level is accomplished simply and quickly. When the electronic
probe is lowered and senses a hydrocarbon, a steady horn tone is sounded and a
yellow LED illuminates. When sensing an oil-water interface or a non-conductive
liquid heavier than water, an intermittent horn tone sounds and a red LED start
flashing.
Standard
Applications:
Other
Applications:
Technical Details
|
Display
Readable Temperature
*Reading
Limit Due to 3-1/3 Digit LCD Display on °F Range |
°F
= -40° to 199.9°*
°C
= -40° to 150.0° |
|
Guaranteed
Temperature Calibration Range |
32°F
to 190°F
(0°C
to 88°C) |
|
Accuracy
Over Calibration Range |
±0.2°F
(±0.1°C) |
|
Accuracy
Linear Measurements |
±1/8”
(±2.0 mm), Plus ±0.1% of
Total Tape Length, worst case |
|
Minimum
Detectable Tank Bottom Liquid Level |
3/8”
(10mm) |
|
Minimum
Detectable Floating Product Level |
1/8”
(3mm) |
|
Batteries
for Intrinsically Safe Operation Only (Supplied) |
Duracell
MN1604 |
|
Battery
Drain (Temperature Mode) |
1.3
ma (In Air)
2.6
ma (In Fluid) |
|
Display |
3-1/2″
Digit Liquid Crystal
Display
1/2” Character Height |
|
Operating
Temperature Limit of Liquid Crystal Display |
-40°F
to 176°F
-40°C
to 80° |
|
Storage
Temperature Limits |
-67°F
to 185°F
-55°C
to 85°C |
|
Tape
Length |
50m |
|
Hazardous
Environments |
Certified
Intrinsically Safe BASEEFA/SIRA/CSA
I, Gas
Groups C & D |
