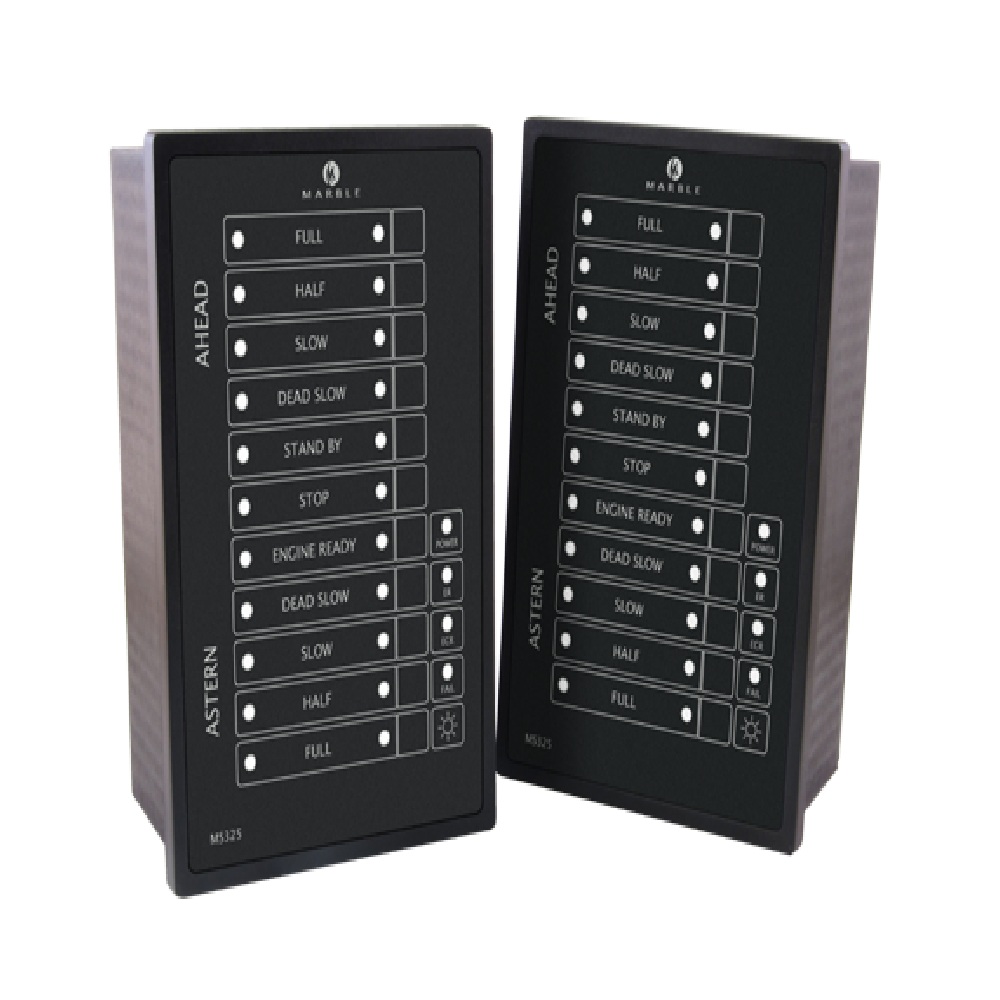

Marble Emergency Telegraph-MS325

Emergency Telegraph

Brand: Marble

Model: MS 325

Description

The MS 325 is designed specifically to give commands if the regular system fails. Commands for the bridge are transmitted to the engine room through the MS-325. This way, operation of all equipment remains possible. All units are the same, later to be configured as Master or Slave.

Advantages

• In case of lost control of the motor/pitch, operation still stays possible.
• By using LEDs, defect indication lights are ruled out.
• LEDs do not blind due to the built-in dimming function.
• Cabling costs are reduced due to a two-wire communication line.
• Can be directly connected to a Voyage Data Recorder
• The bridge unit can be connected to two (2) engine room slave units.

Features

• 11 positions (9 commands / 2 signals)
• Position indication by LEDs
• 2-unit system (bridge & engine room)
• Possibility to use one (1) bridge unit, connected to up to two (2) engine room slave units
• Two-wire bus connection between the units (Modbus RTU)
• Can be easily connected to a Voyage Data Recorder
• Dimensions: 96x144x60mm (WxHxD)
• cut out: 91x139x60 mm (WxHxD)
• Power supply: 24Vdc
