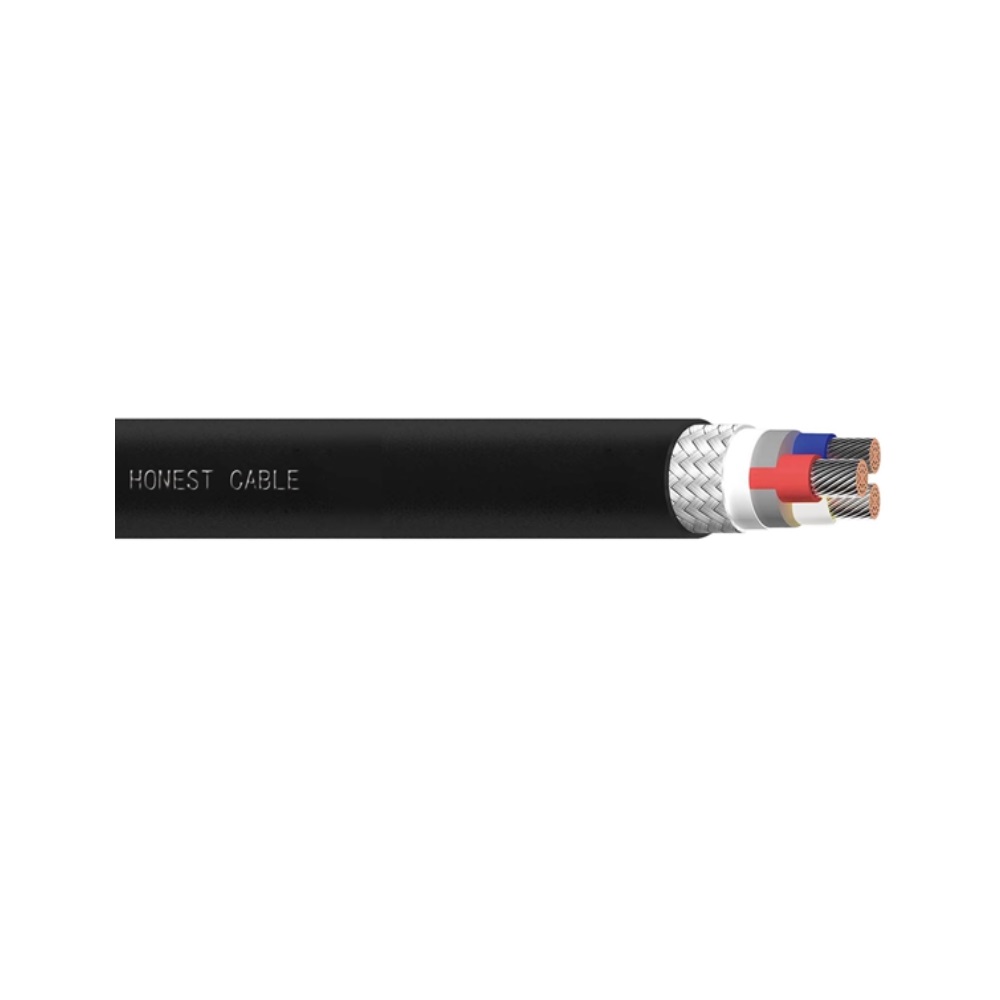

Honest 14C X 1 SQMM Marine Cable-CJ86/SC

Honest 14C X 1 SQMM Marine Cable-CJ86/SC

Honest 14C X 1 SQMM Marine Cable-CJ86/SC

Enquire Now

For pricing and availability, please send an email to info@industrytechstore.com

SKU: HNT006

Category: Marine Cable

Tags Honest , Marine Cable , 14C X 1 SQMM , CJ86/SC , Honest 14C X 1 SQMM Marine Cable-CJ86/SC , Honest Marine Cable , Honest CJ86/SC

Description
Datasheet

Marine Cable

Brand: Honest

Model: CJ86/SC

Description

CJ86/SC is a low-smoke, zero-halogen, armored marine cable for power, lighting, and control circuits on shipboards.
CJ86/SC is designed according to the IEC 60092-353 standard with a rating voltage of 0.6/1kV and an operating temperature of up to 90℃.
CJ86/SC is also called TXOI, M2XCH, LKSM-HF, and HF-CXOSA cable.
All these armored marine cable types are tinned copper wire conductors, XLPE insulation, tinned copper wire braided armor, and PO SHF1 sheaths.
Cross-linked polyethylene (XLPE) is commonly used as insulation in a marine shipboard cable.
XLPE is non-hygroscopic and a relatively pure polymer; even after prolonged exposure to moisture, its electrical properties are unimpaired.
