SKU: HES002
Category: Conventional Panels

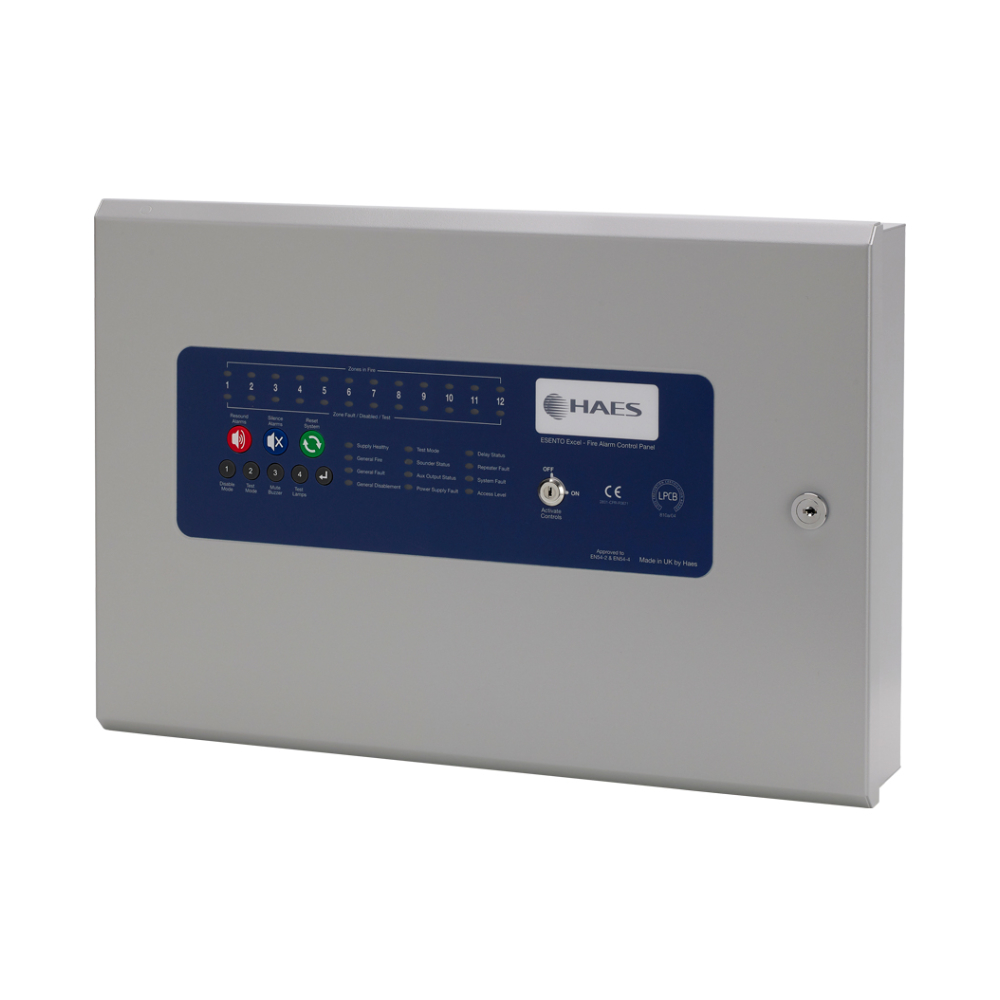

Control Panel
Brand: HAES
Part Number: ESEN-12MAR
Technical Details
Enclosure | 1.2mm Mild Steel IP30. Colour ref: MW334E Interpon powder coat |
Cable Entry | Via 20mm knockouts located in the top and rear of the cabinet |
Dimensions | Back box: 450mm W x 300mm H x 85mm D, Lid: 460mm W x 310mm H x 25mm D |
Mains Supply | 3A internal switch mode power supply, Nom 27v DC |
Battery Capacity | 2 x 7.0Ah 12v VRSLA |
Detection Zones | 12 x conventional. EOL = 4K7R |
Sounder Circuits | 4 x monitored, fused @500mA. EOL = 4K7R |
Networking | Up to 8 control panels, fault tolerant RS485 communication, requires TPCA05 network card |
On Board Relays | 2 x programmable, 3A, 30v volt free changeover, additional relay provided on high spec zone card |
Outputs | 2 x programmable, 40mA switch -ve, 2 additional outputs provided on high spec zone card |
Switch Inputs | Class change & alert (pulsing) |
Event Log | 40 event history |
Intrinsically Safe Mode | Selectable per zone |
False Alarm Management | Type A, B & C dependency modes, approved by LPCB |
Delay Timer | On board programmable delay timer 1-10 mins |
Muster Alarm | Selectable per zone |
