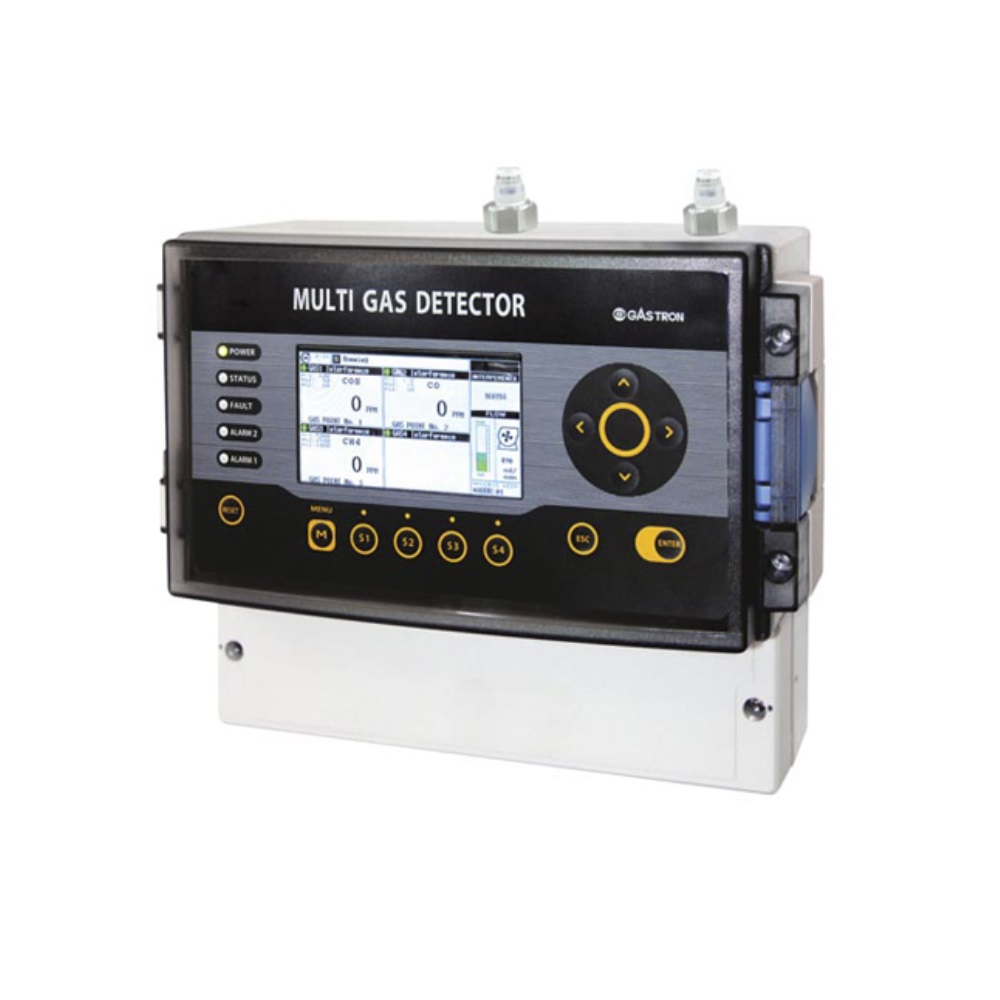

Gastron Fixed Type Freon, Flammable, Oxygen & Toxic MULTI Gas Detector- GTM-2000

Description
Datasheet

Gas Detector

Brand: Gastron

Part Number: GTM-2000

Description

Detect Freon, Flammable, Oxygen & Toxic gases simultaneously
Apply algorithm to prevent malfunction for interference gas (PA, Ethanol, FC3283 and Alcohol types)
Fast response of gas leakage with a high efficient pump inside
Detection gas from low to high concentration owing to various detection principle
Stable quality and proved detection principle for service life
Built in Data & Event Logging
Parameter setting with Color graphic LCD
Self diagnosis function
Flow Sensor to control flow rate automatically
2-stage alarm, 1-trouble display and relay contact output
4-20mA output signal
Easy configuration of monitoring by RS-485 Modbus (Isolated) and PoE communication(option)
Calibration and maintenance by one-man

Technical Details

Measuring Gas	Flammable Gases \| Freon gases \| O2/Toxic gases (CO, COS & etc)
Measuring Method	Catalytic cell \| Infra-red \| Electrochemical Cell
Measuring Range	0 ~5000ppm, 100%LEL, 100%Vol \| 0~2000ppm
Operating Temperature	-10°C~+50°C

Download Datasheet
