For pricing and availability, please send an email to info@industrytechstore.com
SKU: RSM007
Category: Pressure Transmitter

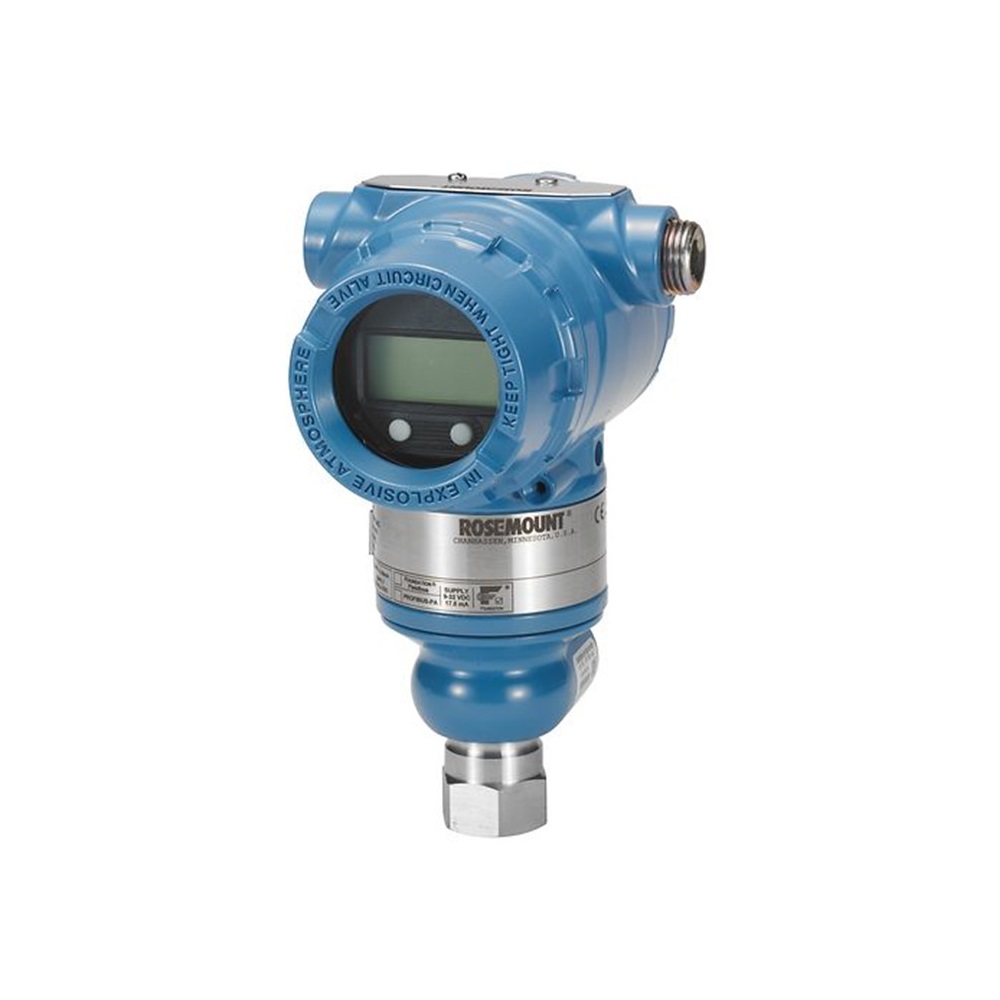

Pressure Transmitter
Brand:
Emerson Rosemount
Model: 3051S
Partner Number: 3051T (3051TG2A2B21)
Description
Confidently
measure pressure and level with the Rosemount 3051 In-Line Pressure
Transmitter. Engineered for 10-year installed stability and 0.04% of span
accuracy, this industry-leading pressure transmitter provides you with the
information necessary to run, control and monitor processes. Available with a
graphical, back-lit display, Bluetooth® connectivity, and enhanced software
capabilities designed to access the data you need faster than ever before.
Technical Data
|
Rangedown |
Up to 150:1 |
|
Communication Protocol |
4-20 MA HART®, WirelessHART®,
FOUNDATION™ fieldbus, PROFIBUS® PA, 1-5 V Low Power HART® |
|
Measurement Range |
Up to 20000 psig (1378,95 bar)
gage Up to 20000 psia (1378,95 bar)
absolute |
|
Process Wetted Material |
316L SST, Alloy C-276, Alloy
400, Tantalum, Gold-plated 316L SST, Gold-plated Alloy 400 |
|
Diagnostics |
Basic Diagnostics, Process
Alerts, Loop Integrity Diagnostics, Plugged Impulse Line Diagnostics |
|
Certifications/Approvals |
SIL 2/3 certified to IEC 61508
by an independent 3rd party, NSF, NACE®, hazardous location, see full specs
for complete list of certifications |
|
Wireless Update Rate |
1 sec. to 60 min., user
selectable |
|
Wireless Range |
Internal antenna (225 m) |
