SKU: RSM019
Category: Pressure Transmitter

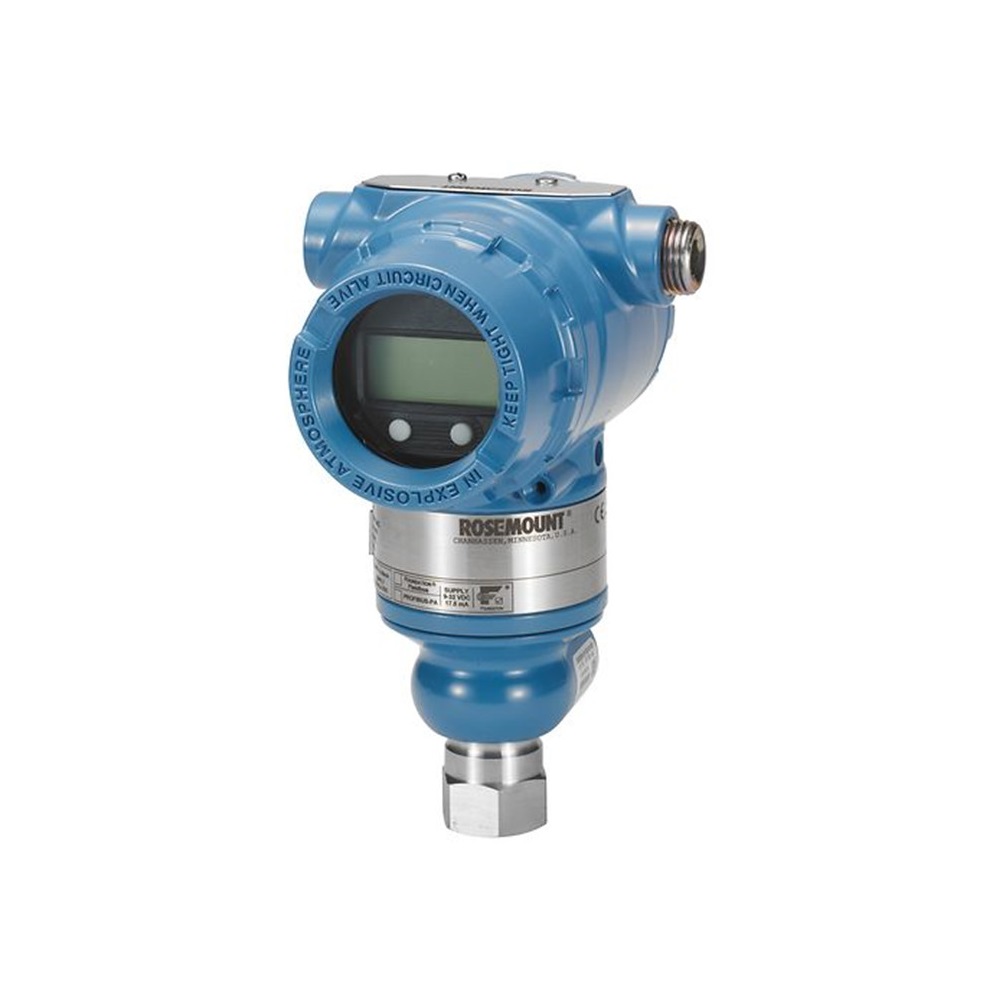

Pressure Transmitter
Brand:
Emerson Rosemount
Model: 3051S
Partner Number: 3051TA1W2B21KI1Q4M5
Description
Confidently
measure pressure and level with the Rosemount 3051 In-Line Pressure
Transmitter. Engineered for 10-year installed stability and 0.04% of span
accuracy, this industry-leading pressure transmitter provides you with the
information necessary to run, control and monitor processes. Available with a
graphical, back-lit display, Bluetooth® connectivity, and enhanced software
capabilities designed to access the data you need faster than ever before.
Technical Data
Rangedown | Up
to 150:1 |
Communication
Protocol | 4-20
MA HART®, WirelessHART®, FOUNDATION™ fieldbus, PROFIBUS® PA, 1-5 V Low Power
HART® |
Measurement
Range | Up
to 20000 psig (1378,95 bar) gage Up
to 20000 psia (1378,95 bar) absolute |
Process
Wetted Material | 316L
SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated 316L SST, Gold-plated
Alloy 400 |
Diagnostics | Basic
Diagnostics, Process Alerts, Loop Integrity Diagnostics, Plugged Impulse Line
Diagnostics |
Certifications/Approvals | SIL
2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE®, hazardous
location, see full specs for complete list of certifications |
Wireless
Update Rate | 1
sec. to 60 min., user selectable |
Wireless
Range | Internal
antenna (225 m) |
