SKU: 1SAM350000R1009
Category: Soft Starters
Circuit Breaker
Brand:
ABB
Model:
MS132-6.3
Part Number:
1SAM350000R1009
Description

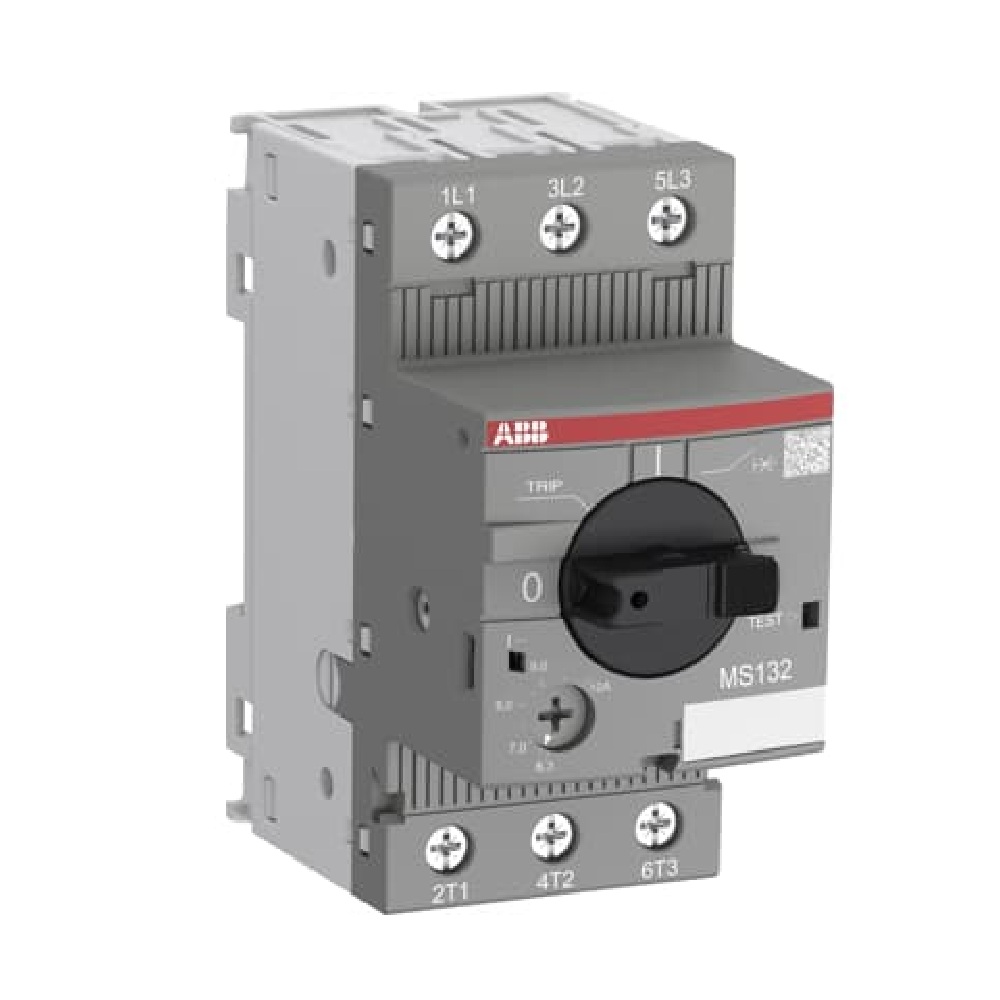

The
MS132-6.3 manual motor starter (also known as a motor protection circuit
breaker or manual motor protector) is a compact 45 mm wide device with a rated
operational current of Ie = 6.3 A. This device is used to manually switch on
and off motors and to protect them reliably and without the need for a fuse
from short circuits, overloads, and phase failures. The manual motor starter
offers a rated service short-circuit breaking capacity Ics = 100 kA at 400 VAC
and trip class 10. Further features are the built-in disconnect function,
temperature compensation, trip-free mechanism, and a rotary handle with a clear
switch position indication.
