For pricing and availability, please send an email to info@industrytechstore.com
SKU: 2CDS271001R0064
Category: Breakers

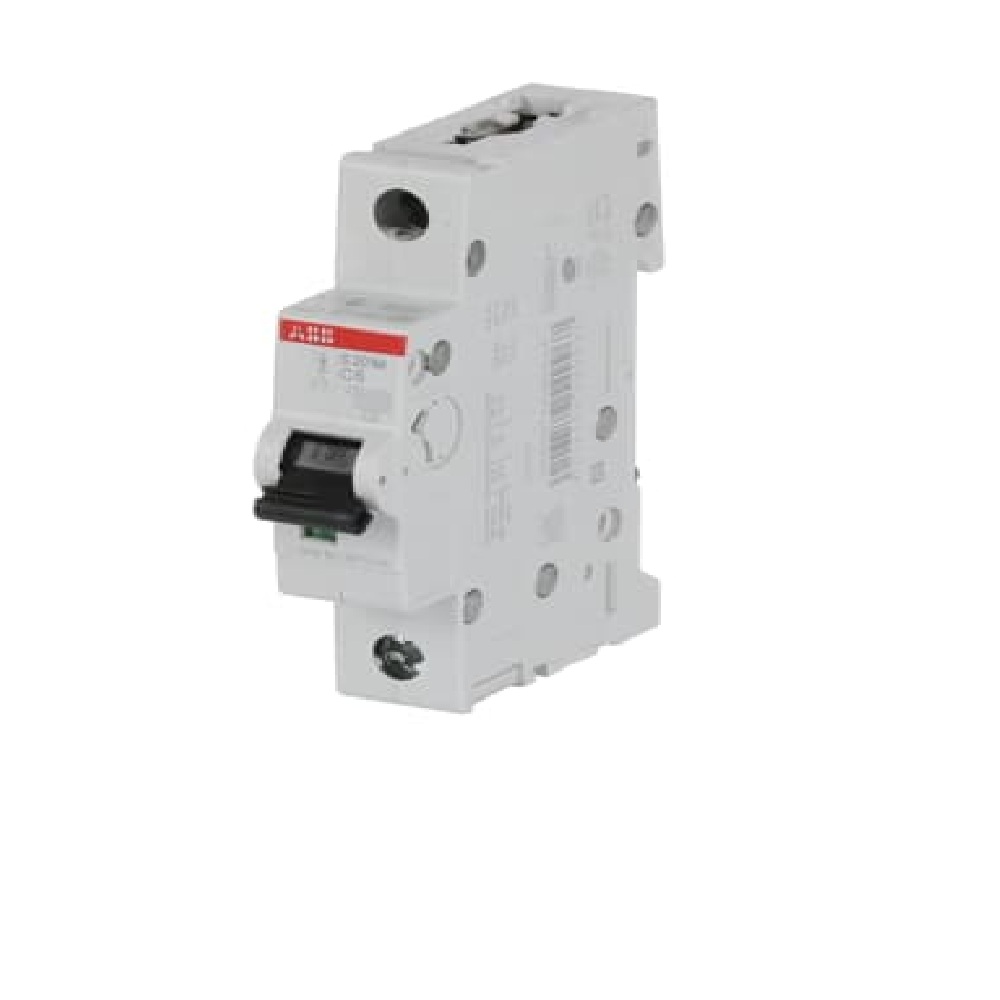

Circuit Breaker
Brand:
ABB
Model:
S201M-C6
Part Number:
2CDS271001R0064
Description
System pro M compact S200M miniature circuit breakers are current limiting.
They have two different tripping mechanisms: the delayed thermal tripping
mechanism for overload protection and the electromechanics tripping mechanism
for short circuit protection. They are available in different characteristics
(B, C, D, K, Z), configurations (1P, 1P+N, 2P, 3P, 3P+N, 4P), breaking
capacities (up to 10 kA at 230/400 V AC), and rated currents (up to 63 A). All
MCBs of the product range S200M comply with IEC/EN 60898-1 and IEC/EN 609 47-2,
allowing the use for residential, commercial, and industrial applications.
Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space.
