SKU: ABB029
Category: MCB

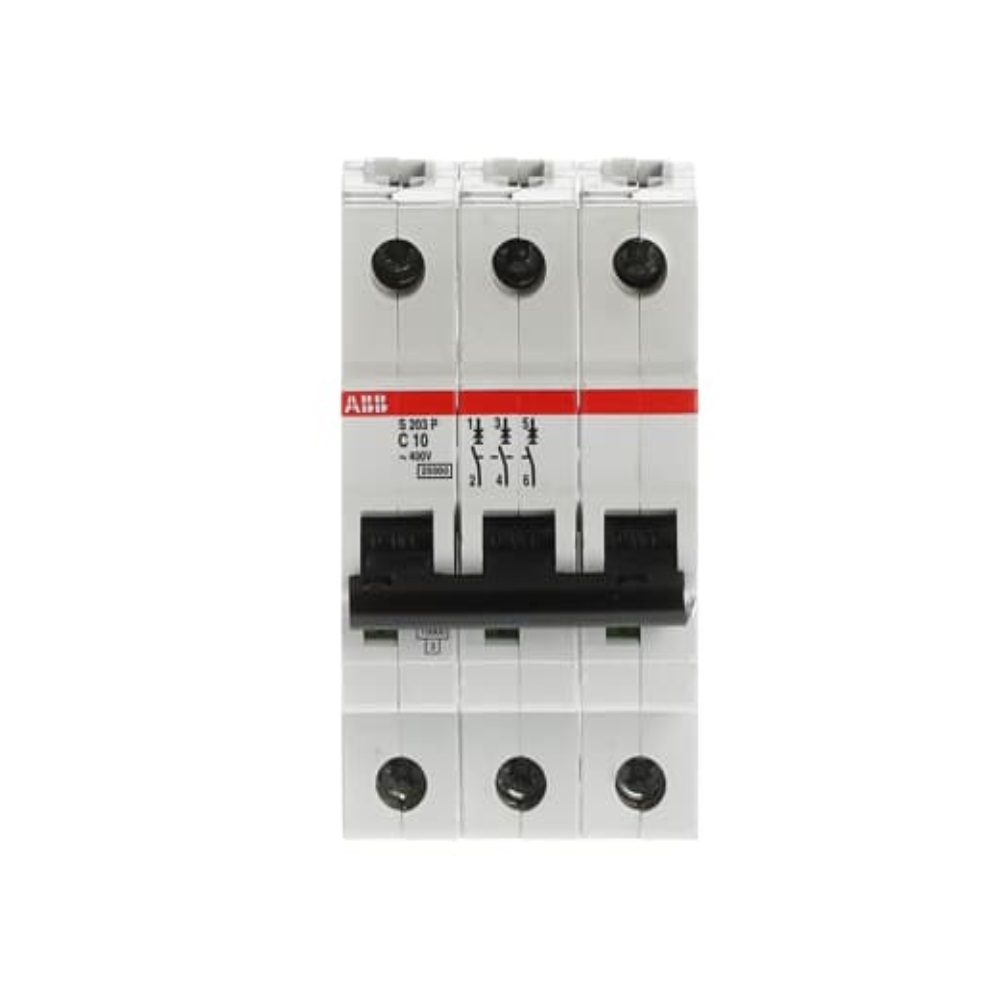

Miniature Circuit Breaker
Brand:
ABB
Model: S203P-C10
Part Number: 2CDS282001R0104
Description
System
Pro M compact S200P miniature circuit breakers are current-limiting. They have
two different tripping mechanisms: the delayed thermal tripping mechanism for
overload protection and the electromechanics tripping mechanism for short
circuit protection. They are available in different characteristics (B, C, D, K,
Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 25 kA at
230/400 V AC), and rated currents (up to 63A). All MCBs of the product range
S200P comply with IEC/EN 60898-1, IEC/EN 609 47-2, UL1077, and CSA 22.2 No.
235, allowing the use for residential, commercial, and industrial applications.
Bottom-fitting auxiliary contact can be mounted on S200P to save 50% space.
Technical Details
Standards | CSA 22.2 No. 235 IEC/EN 60898-1 IEC/EN 60947-2 UL 1077 |
Tripping Characteristic | C |
Rated Operational Voltage | acc. to IEC 60898-1 400 V AC acc. to IEC 60898-1 400 V acc. to IEC 60947-2 400 V AC |
Operational Voltage | Maximum (Incl. Tolerance) 440 V AC Minimum 12 V AC Minimum 12 V DC |
Ambient Air Temperature | Operation -25 ... +55 °C Storage -40 ... +70 °C |
Reference Ambient Air Temperature | 30 °C |
Degree of Protection | IP20 IP40 Enclosure with Cover IP40 |
Maximum Operating Voltage UL/CSA | 480Y/277 V AC |
